KP20MSA-M

KP20MSA-M

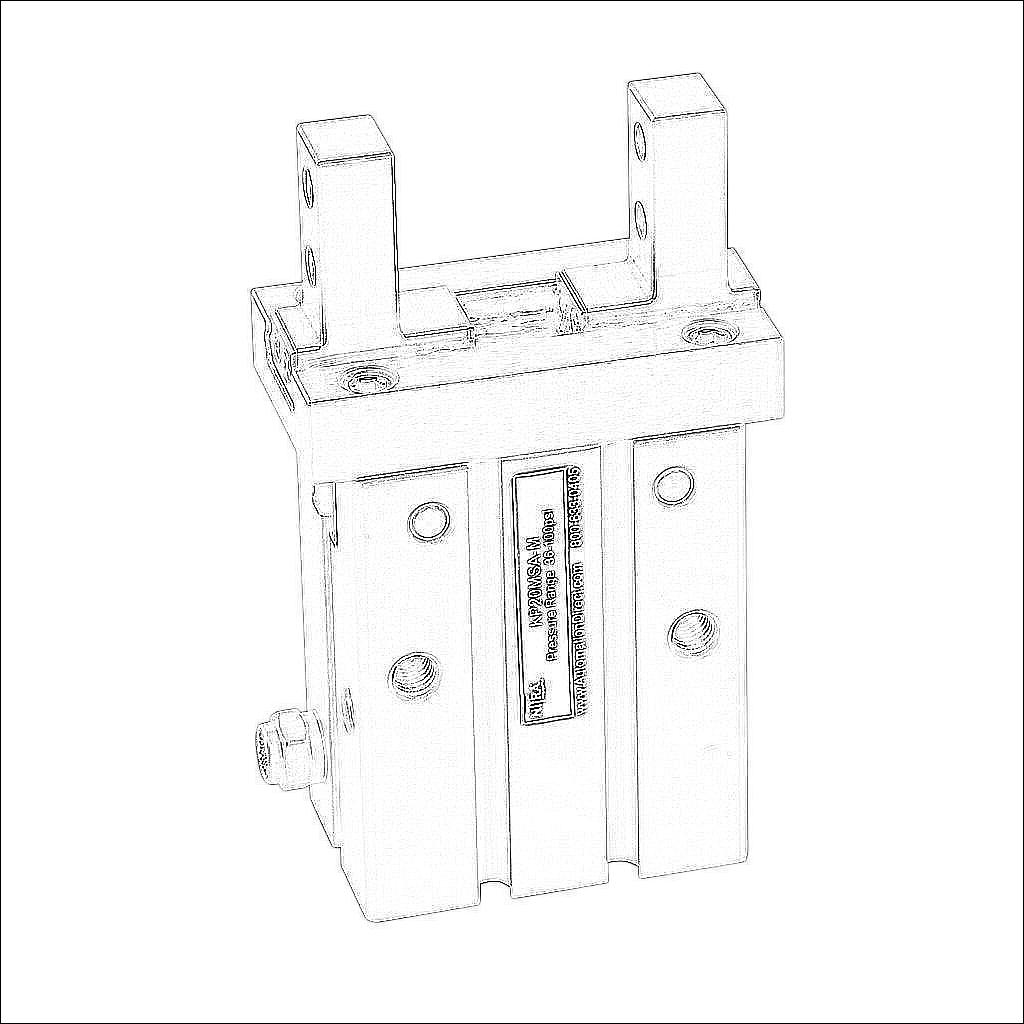

NITRA pneumatic gripper, parallel, single acting, N.O., 20mm bore, 10mm stroke, side mount grip, anodized aluminum body, M5 x 0.8 female ISO port(s).

$477.50
/
Technical Data
BrandNITRA
ItemGripper
Working FluidAir or inert gas
Grip TypeParallel
Action TypeSingle acting
Operation ModeN.O.
Bore Diameter20mm
Stroke10mm
Grip Mount StyleSide
Body MaterialAnodized aluminum
Port SizeM5 x 0.8 female ISO
Repeatability+/- 0.01mm
Cycle Rate180 cyc/min
Resulting Gripper Travel10mm
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
