L2A-2/0-1

L2A-2/0-1

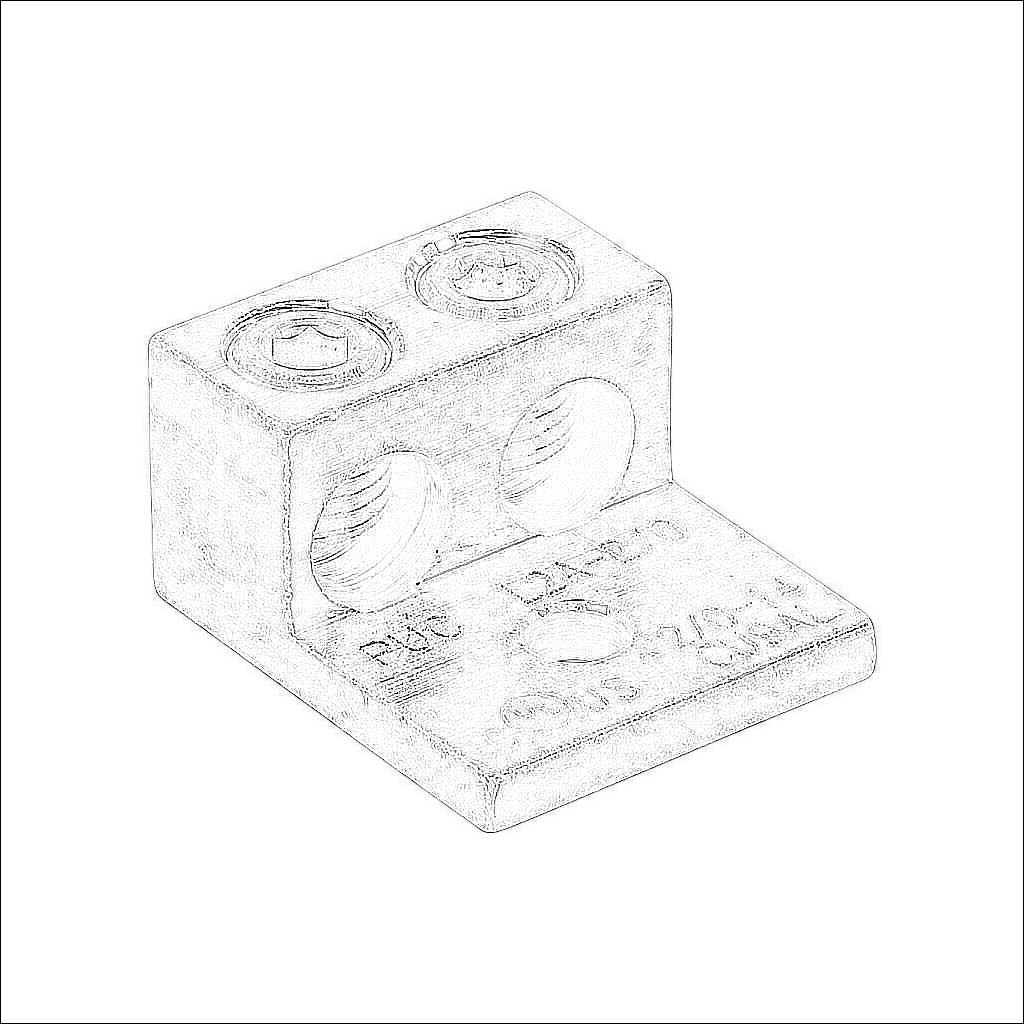

Penn-Union mechanical lug, box type, tin-plated aluminum, 600V, 2 openings, (1) 14-2/0 AWG stranded copper or (1) 8-2/0 AWG stranded aluminum, AL9CU.

$3.13
/
Technical Data
BrandPenn-Union
ItemMechanical lug
Lug TypeBox type
MaterialTin-plated aluminum
Voltage Rating600V
Number Of Openings2
Tightening Torque
  • 120 in-lb copper or aluminum
Conductor Bolt Style3/16in hex
Conductor MaterialCopper or aluminum
Conductor Size
  • (1) 14-2/0 AWG stranded copper or (1) 8-2/0 AWG stranded aluminum
Mounting Holes1 hole
Mounting Bolt Size1/4in
Dual RatingAL9CU
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
