LA-0-1

LA-0-1

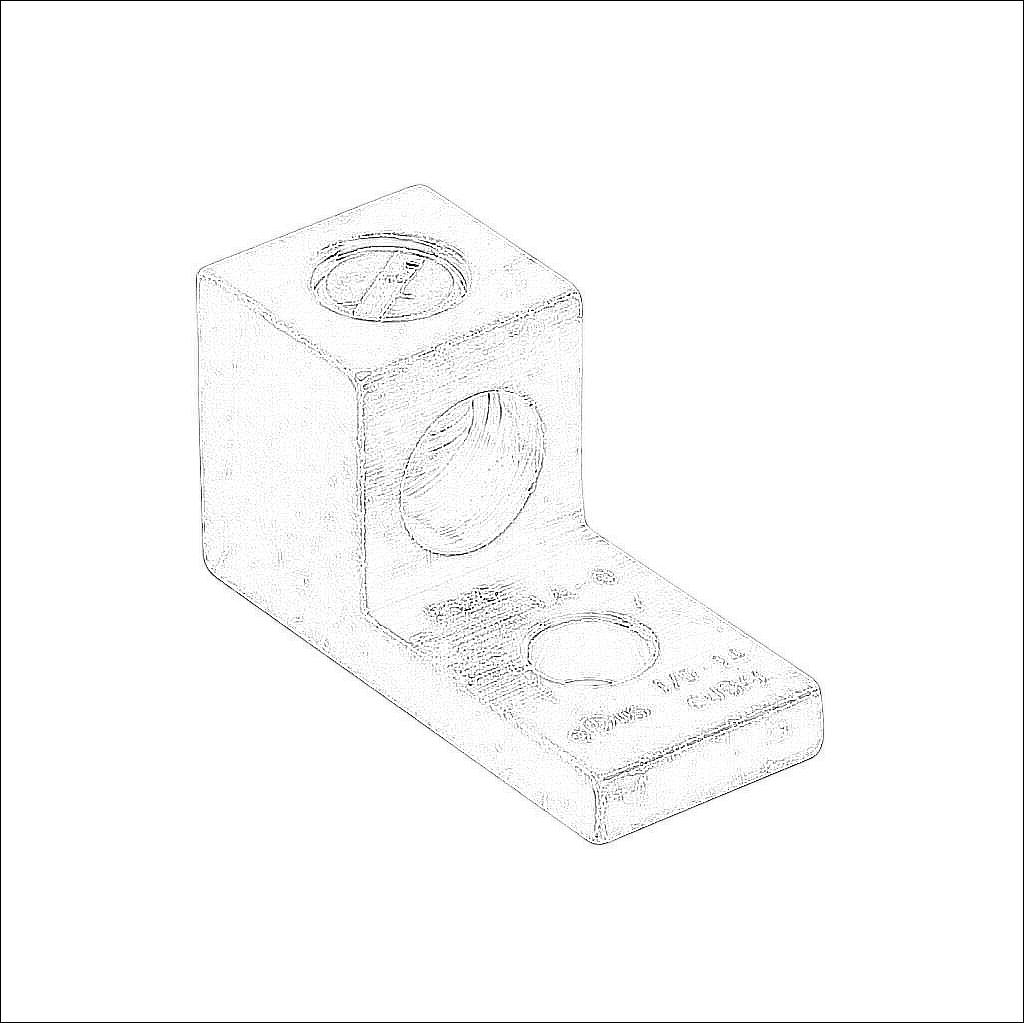

Penn-Union mechanical lug, box type, tin-plated aluminum, 600V, 1 openings, (1) 14-1/0 AWG stranded copper, (2) 14-4 AWG stranded copper, (1) 12-1/0 AWG stranded aluminum or (2) 12-4 AWG stranded aluminum, AL9CU.

$1.88
/
Technical Data
BrandPenn-Union
ItemMechanical lug
Lug TypeBox type
MaterialTin-plated aluminum
Voltage Rating600V
Number Of Openings1
Tightening Torque
  • 50 in-lb copper or 35 in-lb aluminum
Conductor Bolt StyleSlotted set screw
Conductor MaterialCopper or aluminum
Conductor Size
  • (1) 14-1/0 AWG stranded copper, (2) 14-4 AWG stranded copper, (1) 12-1/0 AWG stranded aluminum or (2) 12-4 AWG stranded aluminum
Mounting Holes1 hole
Mounting Bolt Size1/4in
Dual RatingAL9CU
