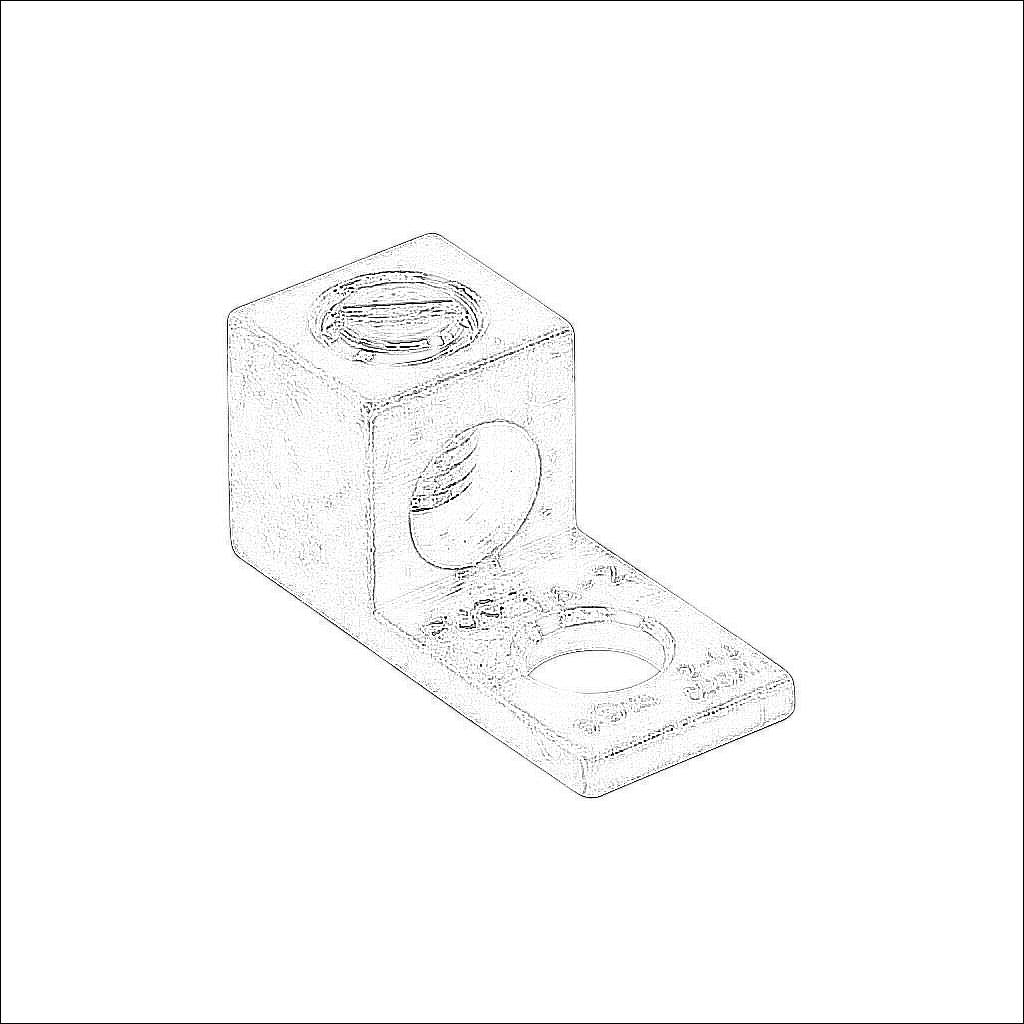

LA-2-1

LA-2-1

Penn-Union mechanical lug, box type, tin-plated aluminum, 600V, 1 openings, (1) 14-2 AWG stranded copper, (2) 14-10 AWG stranded copper, (1) 12-2 AWG stranded aluminum or (2) 10-12 AWG stranded aluminum, AL9CU.

$1.25
/
Technical Data
BrandPenn-Union
ItemMechanical lug
Lug TypeBox type
MaterialTin-plated aluminum
Voltage Rating600V
Number Of Openings1
Tightening Torque
  • 45 in-lb copper or aluminum
Conductor Bolt StyleSlotted set screw
Conductor MaterialCopper or aluminum
Conductor Size
  • (1) 14-2 AWG stranded copper, (2) 14-10 AWG stranded copper, (1) 12-2 AWG stranded aluminum or (2) 10-12 AWG stranded aluminum
Mounting Holes1 hole
Mounting Bolt Size1/4in
Dual RatingAL9CU
