LA-250-1

Name: LA-250-1
Brand: Penn-Union
SKU: LA-250-1
Price: 3.75 USD
Availability: InStock

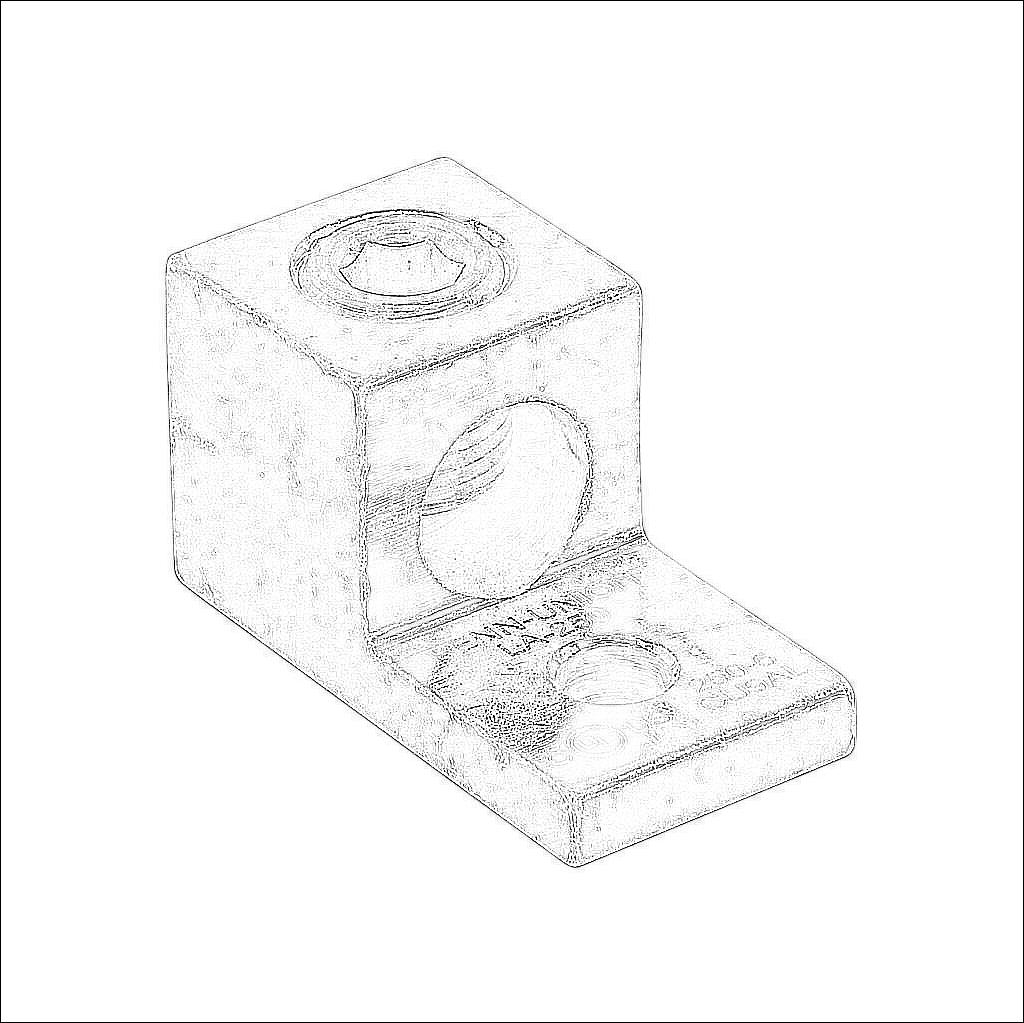

Penn-Union mechanical lug, box type, tin-plated aluminum, 600V, 1 openings, (1) 6 AWG stranded copper or aluminum-250 MCM copper or aluminum, AL9CU.

$3.75

/

		Technical Data
	Brand	Penn-Union
	Item	Mechanical lug
	Lug Type	Box type
	Material	Tin-plated aluminum
	Voltage Rating	600V
	Number Of Openings	1
	Tightening Torque	275 in-lb copper or aluminum
	Conductor Bolt Style	5/16in hex
	Conductor Material	Copper or aluminum
	Conductor Size	(1) 6 AWG stranded copper or aluminum-250 MCM copper or aluminum
	Mounting Holes	1 hole
	Mounting Bolt Size	5/16in
	Dual Rating	AL9CU

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
