LA-500-1

Name: LA-500-1
Brand: Penn-Union
SKU: LA-500-1
Price: 9.38 USD
Availability: InStock

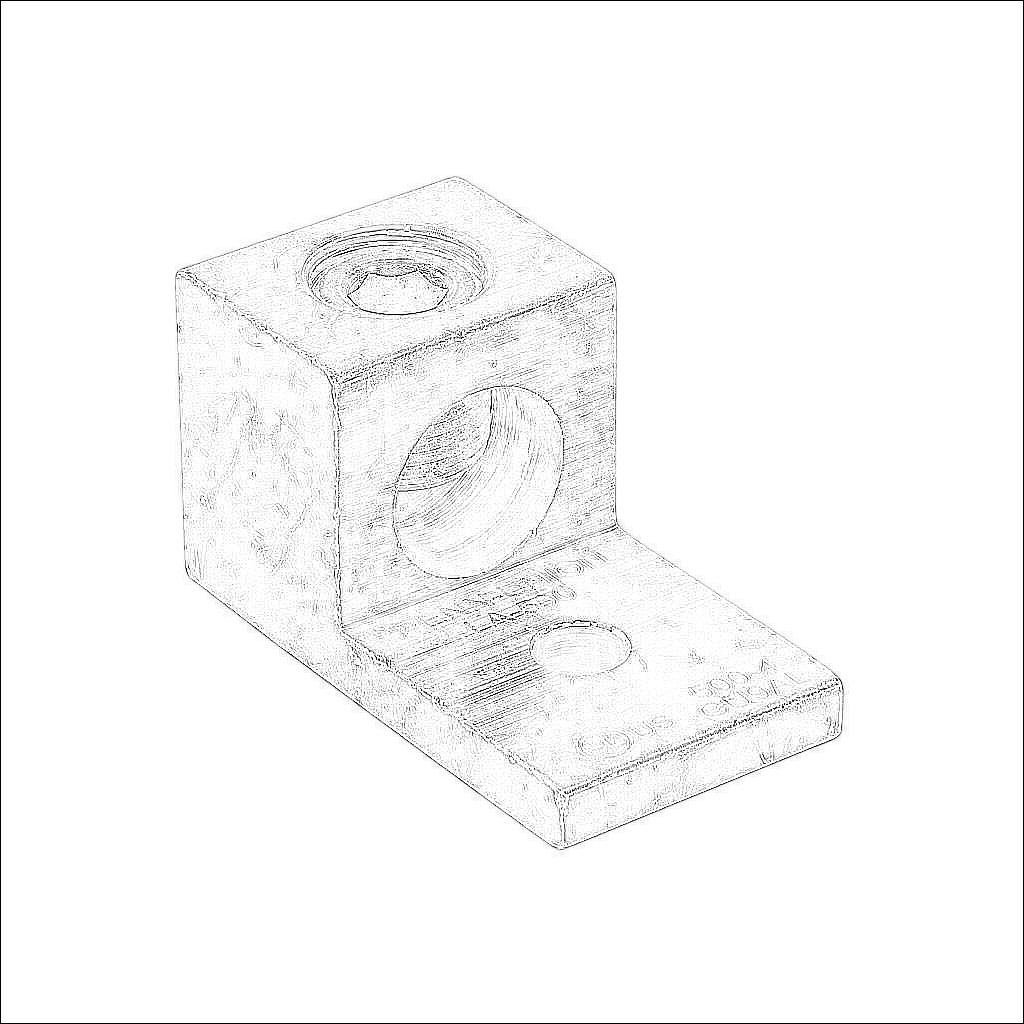

Penn-Union mechanical lug, box type, tin-plated aluminum, 600V, 1 openings, (1) 4 AWG-500 MCM stranded copper or aluminum, AL9CU.

$9.38

/

		Technical Data
	Brand	Penn-Union
	Item	Mechanical lug
	Lug Type	Box type
	Material	Tin-plated aluminum
	Voltage Rating	600V
	Number Of Openings	1
	Tightening Torque	375 in-lb copper or aluminum
	Conductor Bolt Style	3/8in hex
	Conductor Material	Copper or aluminum
	Conductor Size	(1) 4 AWG-500 MCM stranded copper or aluminum
	Mounting Holes	1 hole
	Mounting Bolt Size	3/8in
	Dual Rating	AL9CU
