| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

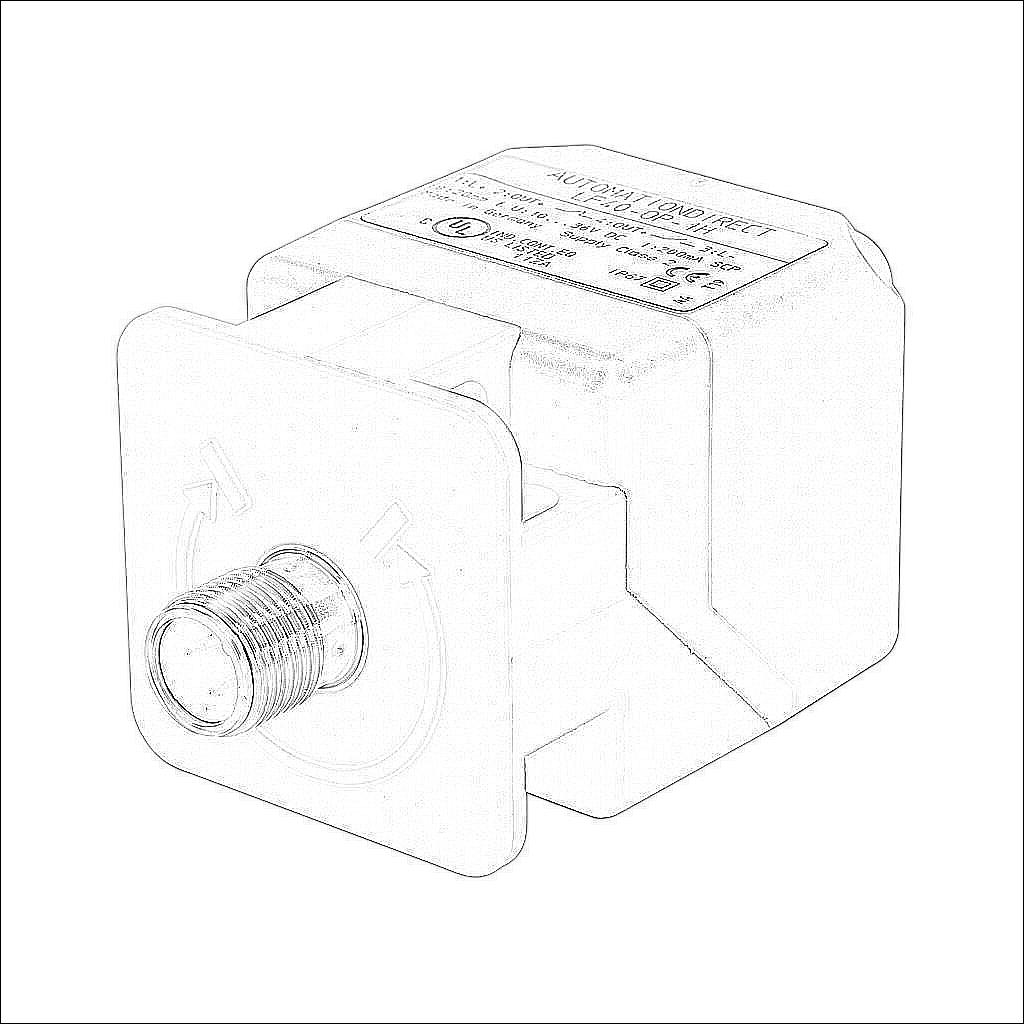

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Standard duty | |
| Shape | Rectangular | |
| Housing Size | 40 x 40 x 66mm body | |
| Housing Material | Die-cast zinc nickel-plated | |
| Sensing Method | Extended sensing | |
| Adjustable | No | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Operation Mode | N.O./N.C. complementary outputs | |
| Sensing Distance | 20mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 100 Hz | |
| Operating Voltage | 10-36 VDC | |
| Operating Temperature | -25 to 70c | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 4-pin M12 quick-disconnect | |
| Additional Information | Purchase cable separately | |
