| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

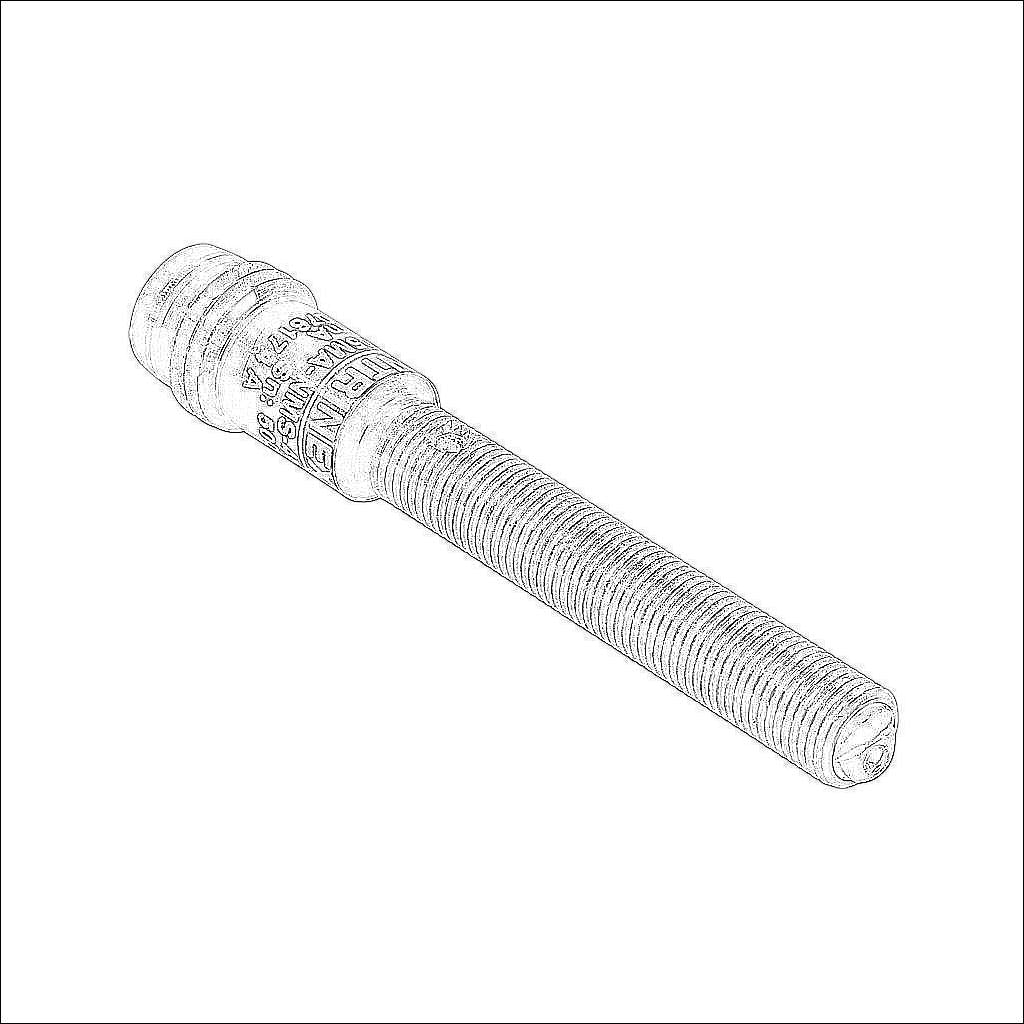

| Item | Photoelectric sensor | |
| Shape | Tubular | |
| Barrel Type | Threaded | |
| Housing Size | 5mm diameter x 45.8mm body | |
| IP Rating | IP67 | |
| Housing Material | Stainless steel | |
| Sensing Method | Through-beam receiver | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Sensing Distance | 0-600mm | |
| Operation Mode | Dark-on | |
| Switching Frequency | 1 kHz | |
| IO-Link Compatible | Yes | |
| Connection | 3-pin M8 quick-disconnect | |
| Communication Port and Connection Type(s) | (1) 3-pin M8 (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.0 | |
| Standard I/O Mode Supported | Yes | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
