| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

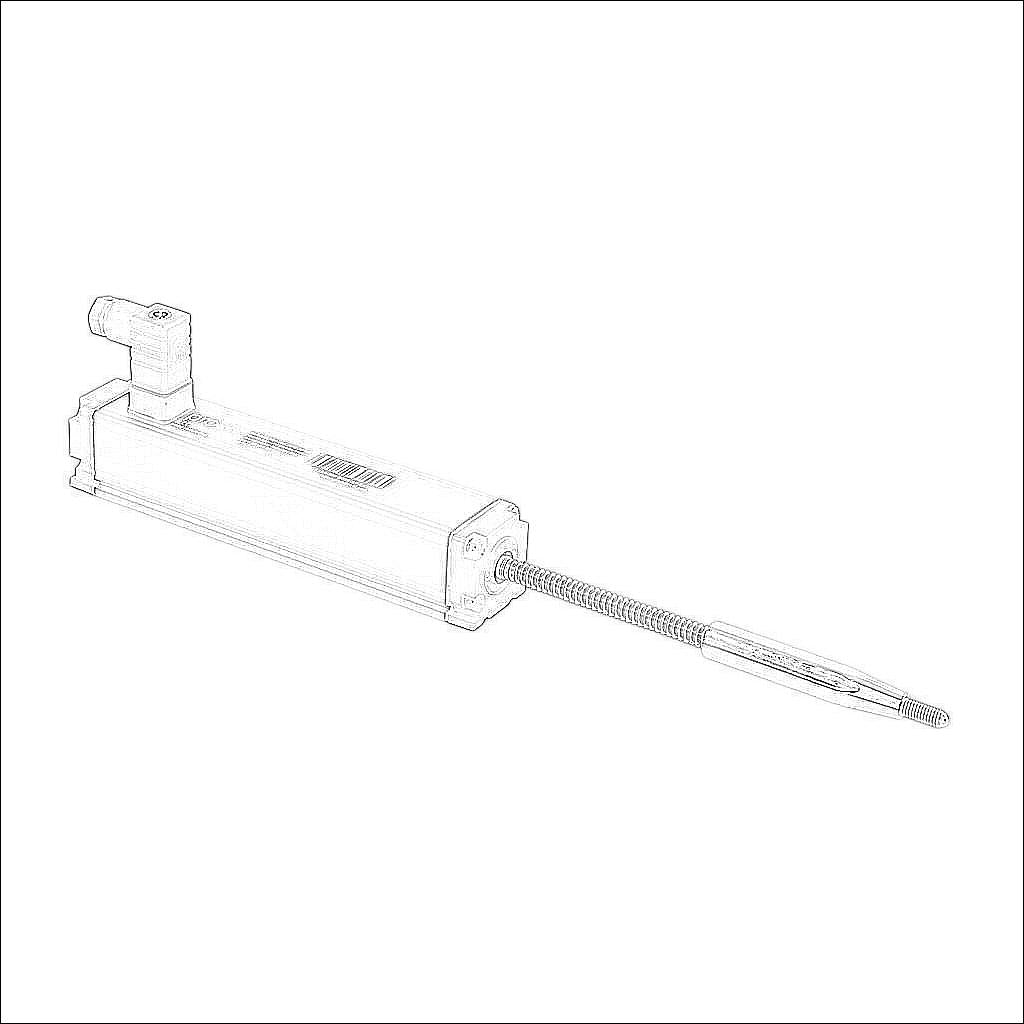

| Item | Linear position sensor | |
| Transducer Type | Potentiometer | |
| Action | Spring loaded slide | |
| Stroke | 75mm | |
| Resistance | 5k ohm | |
| Head Type | M6 | |
| Head Material | Stainless steel | |
| Housing Material | Anodized aluminum | |
| Housing Size | 33 x 33 x 172mm body | |
| Sensor Resolution | Infinite | |
| Linearity | +/- 0.5% | |
| Switching Cycles | 100,000,000 cycles | |
| Mounting | Channel | |
| IP Rating | IP54 | |
| Connection | 8mm DIN 43650 Form C | |
| Number of Wires | 4 | |
| Includes | Mounting brackets and screws, electrical connector | |
