| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

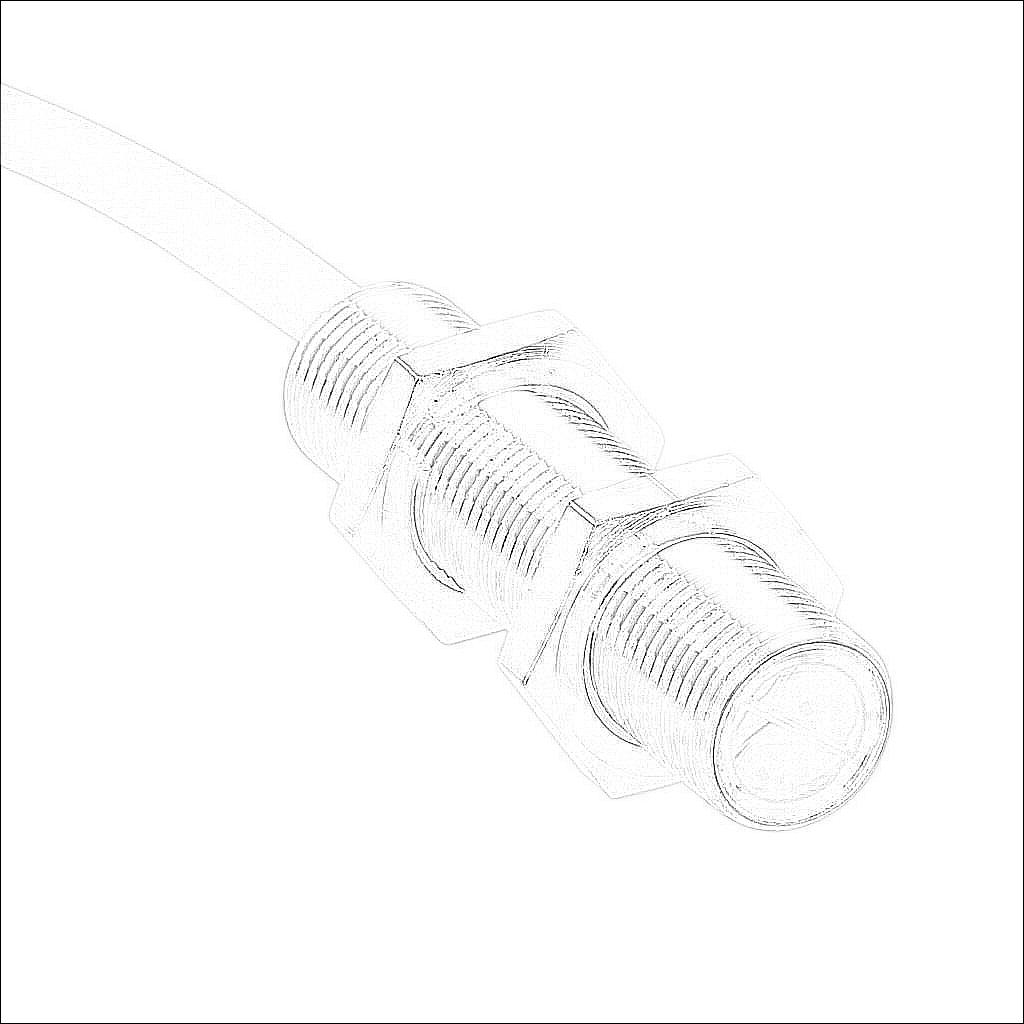

| Item | Photoelectric sensor | |
| Shape | Tubular | |
| Barrel Type | Threaded | |
| Housing Size | 12mm diameter x 50mm body | |
| IP Rating | IP67 | |
| Application | Standard duty and IO-Link | |
| Housing Material | Chrome-plated brass | |
| Sensing Method | Diffuse | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Sensing Distance | 5-800mm | |
| Sensitivity | Potentiometer | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 1.5 kHz | |
| Light Emission | Visible red | |
| IO-Link Compatible | Yes | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | Carbon steel | |
| Connection | Pigtail | |
| Communication Port and Connection Type(s) | (1) 4-wire pigtail (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.0 | |
| Standard I/O Mode Supported | Yes | |
| Includes | Mounting hardware | |
