| Technical Data | ||
|---|---|---|
| Brand | Alliance Sensors | |

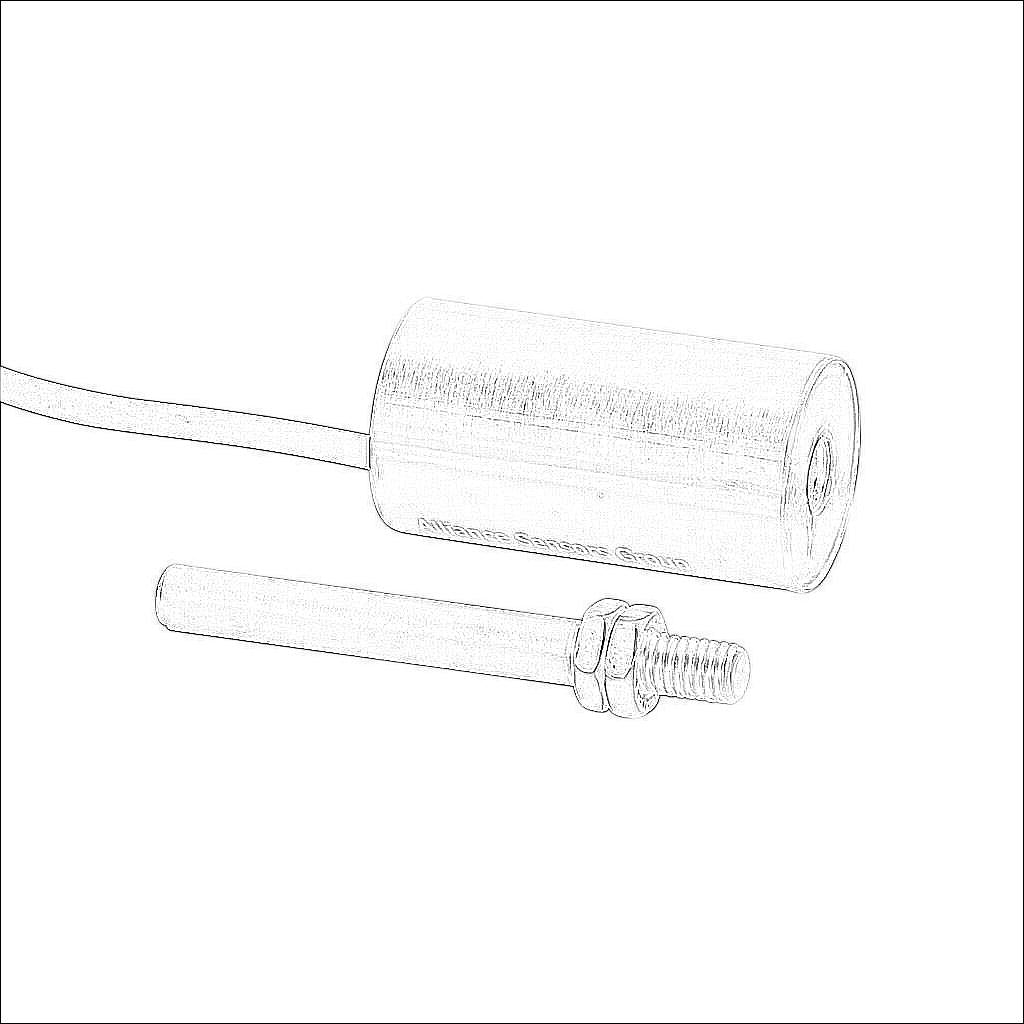

| Item | Linear position sensor | |
| Transducer Type | Inductive | |
| Action | Fixed slide | |
| Stroke | 2.5mm | |
| Shaft Diameter | 5.2mm | |
| Output | 4-20 mA | |
| Housing Material | Stainless steel | |
| Housing Size | 19mm diameter x 35mm body | |
| Operating Voltage | 18-30 VDC | |
| Sensor Resolution | 0.025% of full scale | |
| Linearity | +/- 0.15% | |
| Switching Cycles | 250,000,000 cycles | |
| Mounting | M5 x 0.8 | |
| IP Rating | IP67 | |
| Connection | Pigtail | |
| Number of Wires | 4 | |
| Conductor Size | 28 AWG | |
| Cable Length | 3.2ft/1m | |
| Jacket Material | PUR | |
| Additional Information | Contactless operation | |
