| Technical Data | ||
|---|---|---|
| Brand | WON | |

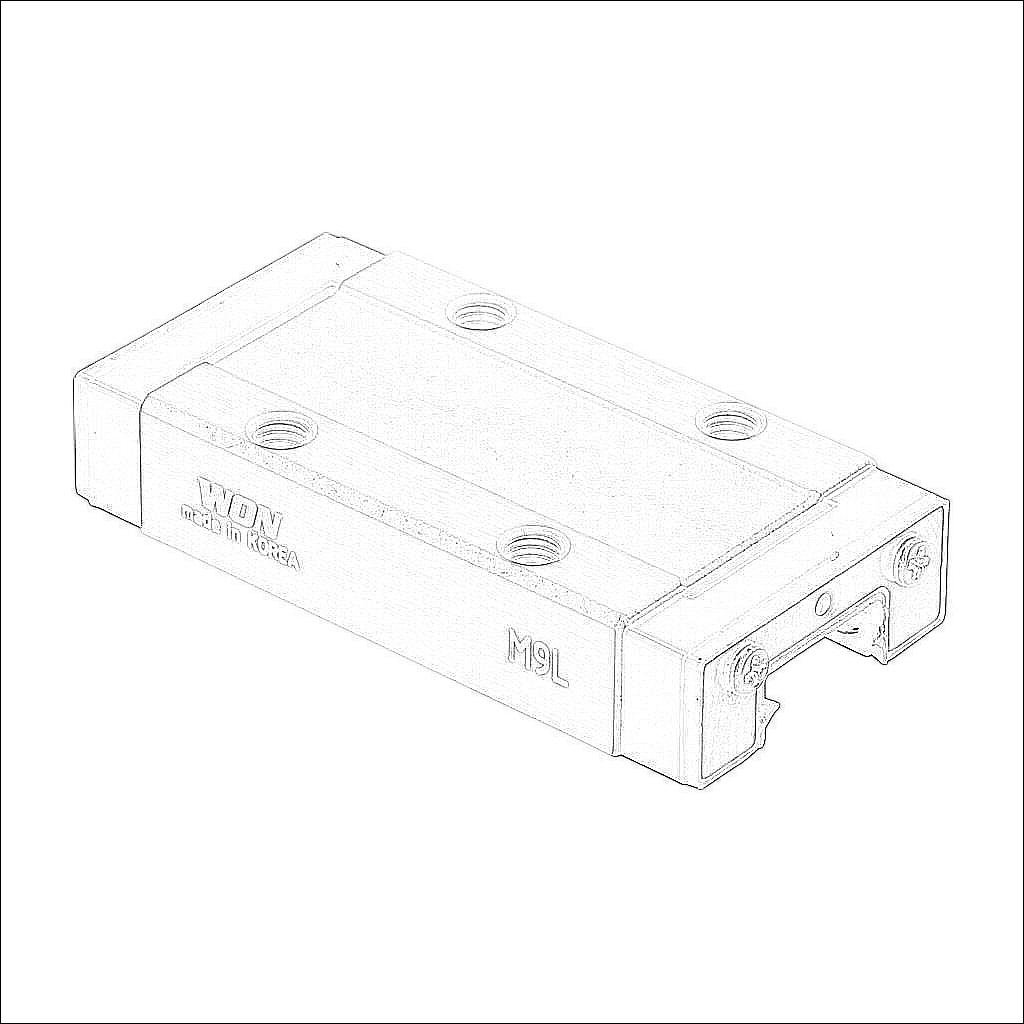

| Item | Mini bearing block | |
| Series | M9 | |
| Bearing Type | Full ball recirculating bearing | |
| Block Type | Rectangular long | |
| Seal Type | End seal | |
| Material | Stainless steel | |
| Precision Class | Moderate precision | |
| Bearing Pre-load | Normal preload | |
| Mass | 25.2g | |
| Static Load Rating (CO) | 4030N | |
| Dynamic Load Rating (C) | 2375N | |
| Pitch Moment Load Rating (Mp) | 21.9 N-m | |
| Pitch Moment Load Rating, 2 Bearings (Mp2) | 102.8 N-m | |
| Yaw Moment Load Rating (My) | 21.9 N-m | |
| Yaw Moment Load Rating, 2 Bearings (My2) | 102.8 N-m | |
| Roll Moment Load Rating (Mr) | 18.74 N-m | |
| For Use With | M9 series rails | |
