| Technical Data | ||
|---|---|---|
| Brand | WON | |

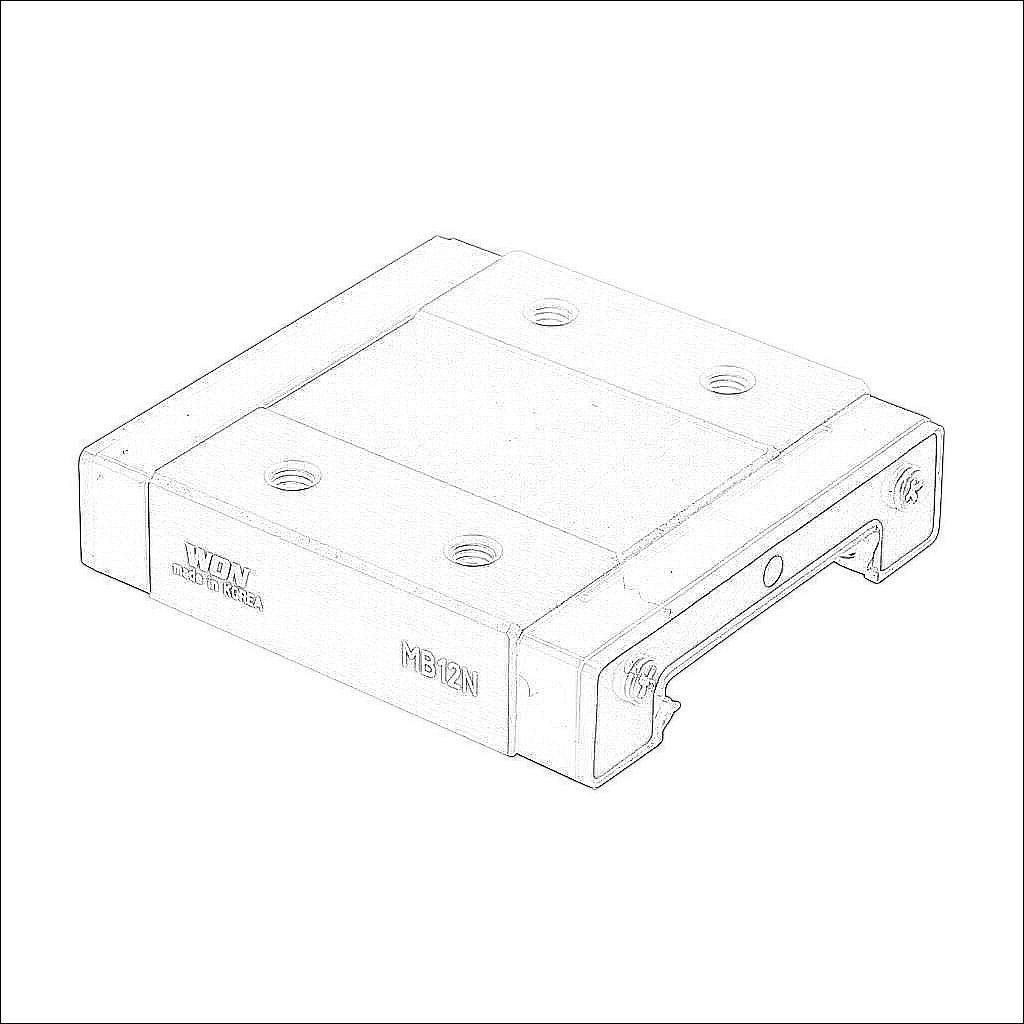

| Item | Wide mini bearing block | |
| Series | MB12 | |
| Bearing Type | Full ball recirculating bearing | |
| Block Type | Rectangular | |
| Seal Type | End seal | |
| Material | Stainless steel | |
| Precision Class | Moderate precision | |
| Bearing Pre-load | Normal preload | |
| Mass | 68.4g | |
| Static Load Rating (CO) | 5723N | |
| Dynamic Load Rating (C) | 4015N | |
| Pitch Moment Load Rating (Mp) | 31.2 N-m | |
| Pitch Moment Load Rating, 2 Bearings (Mp2) | 152.2 N-m | |
| Yaw Moment Load Rating (My) | 31.2 N-m | |
| Yaw Moment Load Rating, 2 Bearings (My2) | 152.2 N-m | |
| Roll Moment Load Rating (Mr) | 69.83 N-m | |
| For Use With | MB12 series rails | |
