| Technical Data | ||
|---|---|---|
| Brand | WON | |

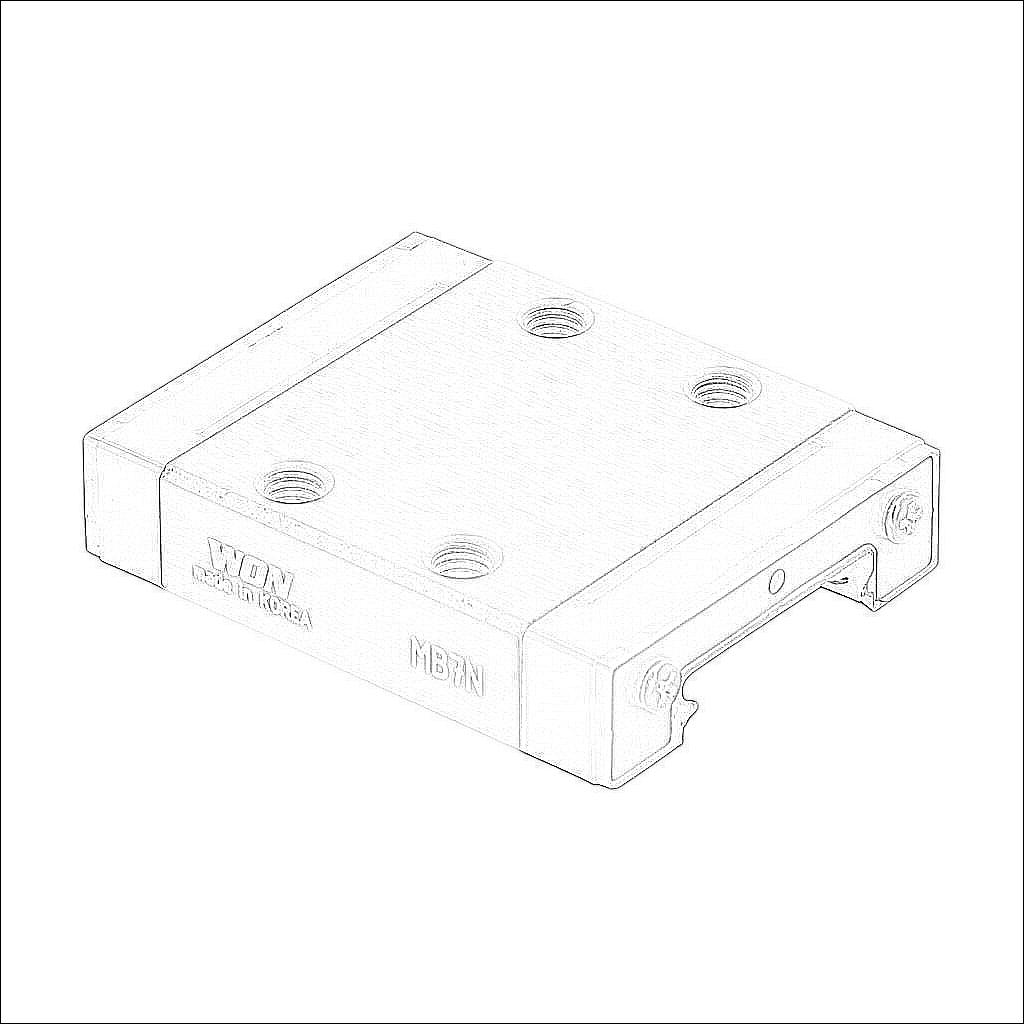

| Item | Wide mini bearing block | |
| Series | MB7 | |
| Bearing Type | Full ball recirculating bearing | |
| Block Type | Rectangular | |
| Seal Type | End seal | |
| Material | Stainless steel | |
| Precision Class | Moderate precision | |
| Bearing Pre-load | Normal preload | |
| Mass | 18.9g | |
| Static Load Rating (CO) | 2650N | |
| Dynamic Load Rating (C) | 1631N | |
| Pitch Moment Load Rating (Mp) | 10.1 N-m | |
| Pitch Moment Load Rating, 2 Bearings (Mp2) | 51.1 N-m | |
| Yaw Moment Load Rating (My) | 10.1 N-m | |
| Yaw Moment Load Rating, 2 Bearings (My2) | 51.1 N-m | |
| Roll Moment Load Rating (Mr) | 18.95 N-m | |
| For Use With | MB7 series rails | |
