MD4-0112T-1

MD4-0112T-1

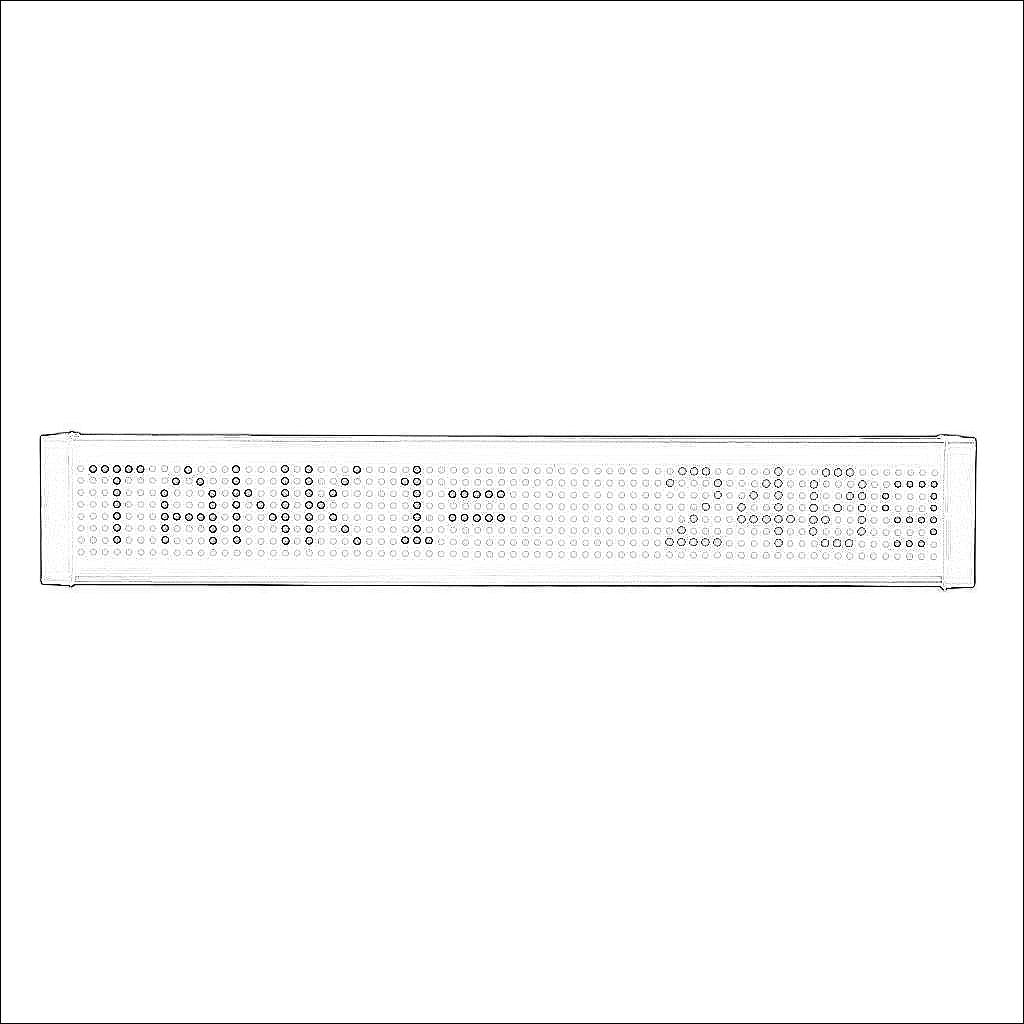

ViewMarq MD4 series industrial LED message display, 1 line x 12 characters, 1.5in and 2in, (2) serial and (1) Ethernet port for configuration and external message control, NEMA 4/12, indoor use only.

$901.25
/
Technical Data
BrandViewMarq
ItemIndustrial LED message display
SeriesMD4
Display Size1 line x 12 characters
Display TypeTri-color LED
Character Size1.5in and 2in
Character ColorRed, amber and green
Character TypeEmbedded string and numeric variables
ScrollingRight, left, up and down
Recommended Maximum Viewable Distance100ft
Communication Port and Connection Type(s)(1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-485 (3-pin terminal)
    • Port Protocol(s)
    • Modbus TCP Server
    • Modbus RTU Slave
    • ASCII
    Port Speed(s)
    • up to 38.4k baud
    • 10/100 Mbps
    Housing MaterialExtruded aluminum
    Housing RatingNEMA 4/12
    Environmental RequirementsIndoor use only
    IncludesMounting hardware, cable glands and (1) Ethernet patch cable
    Programming SoftwareMD-PGMSW configuration software v2.0 or later
    UL RatingUL 61010 rated
    Downloads
    Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
