| Technical Data | ||
|---|---|---|
| Brand | IDEM | |

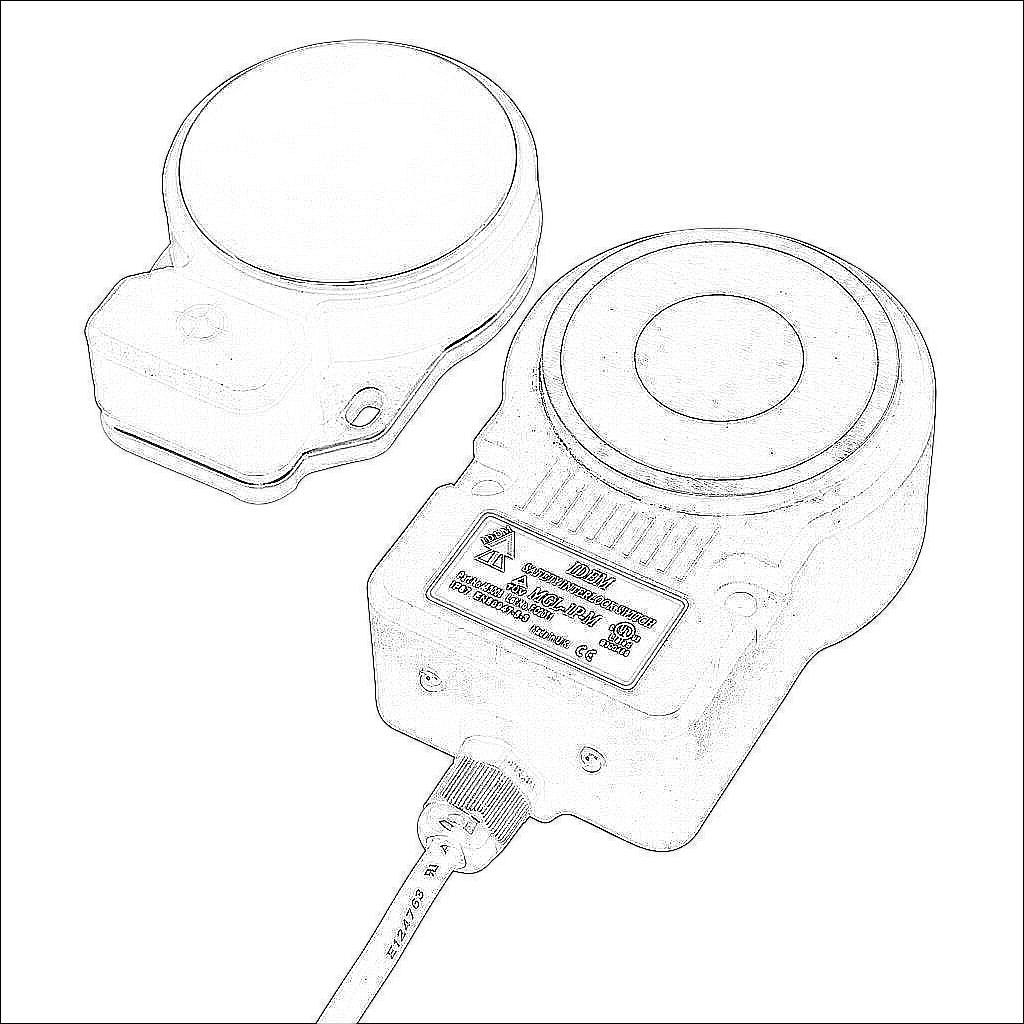

| Item | Safety switch set | |
| Actuator Type | Non-contact master coded RFID | |
| Lock Type | Magnetic, 24 VDC to lock | |
| Holding Force | 1500N | |
| Safety Output Type | (2) N.C. | |
| Monitoring Output Type | (1) N.O. | |
| IP Rating | IP67 | |
| Indicating Type | (2) status LEDs | |
| Housing Material | Plastic | |
| Housing Size | 80 x 115 x 43mm | |
| Head Material | Plastic | |
| Connection | (1) 8-pin M12 quick-disconnect | |
| Cable Length | 9.8in/250mm | |
| Includes | Switch and actuator | |
| Additional Information | Purchase cable separately | |
