| Technical Data | ||
|---|---|---|
| Brand | ReeR | |
| Series | Micron | |

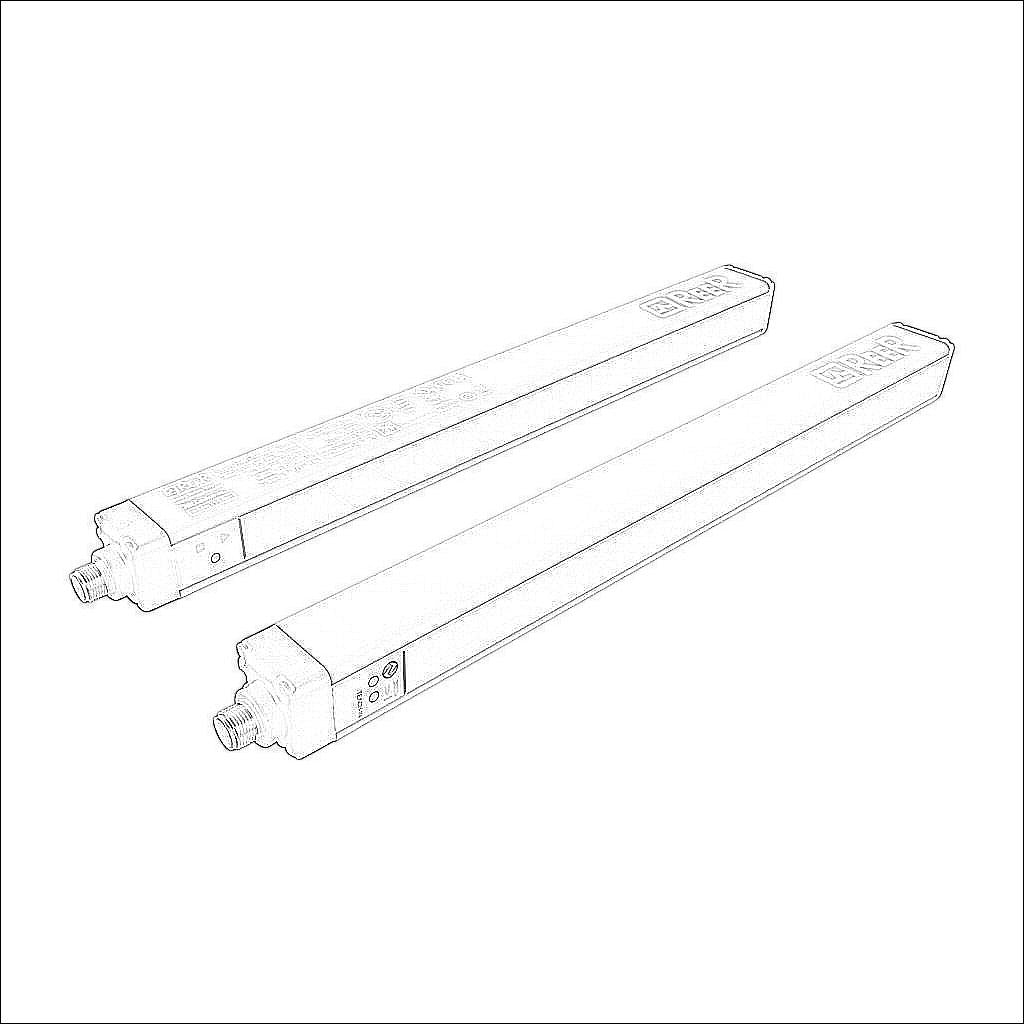

| Item | Light grid | |
| Light Curtain Type | Sender/receiver pair | |
| Function | Measuring | |
| Beam Resolution | 10mm | |
| Detection Height | 290mm | |
| Operating Distance | 0-10m | |
| Switching Output | PNP | |
| Configurable | Yes | |
| IP Rating | IP65 IP67 | |
| Connection | (2) 5-pin M12 quick-disconnects | |
| IO-Link Compatible | Yes | |
| Communication Port and Connection Type(s) | (1) 5-pin M12 A-coded (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.2 | |
| Standard I/O Mode Supported | Yes | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
