| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

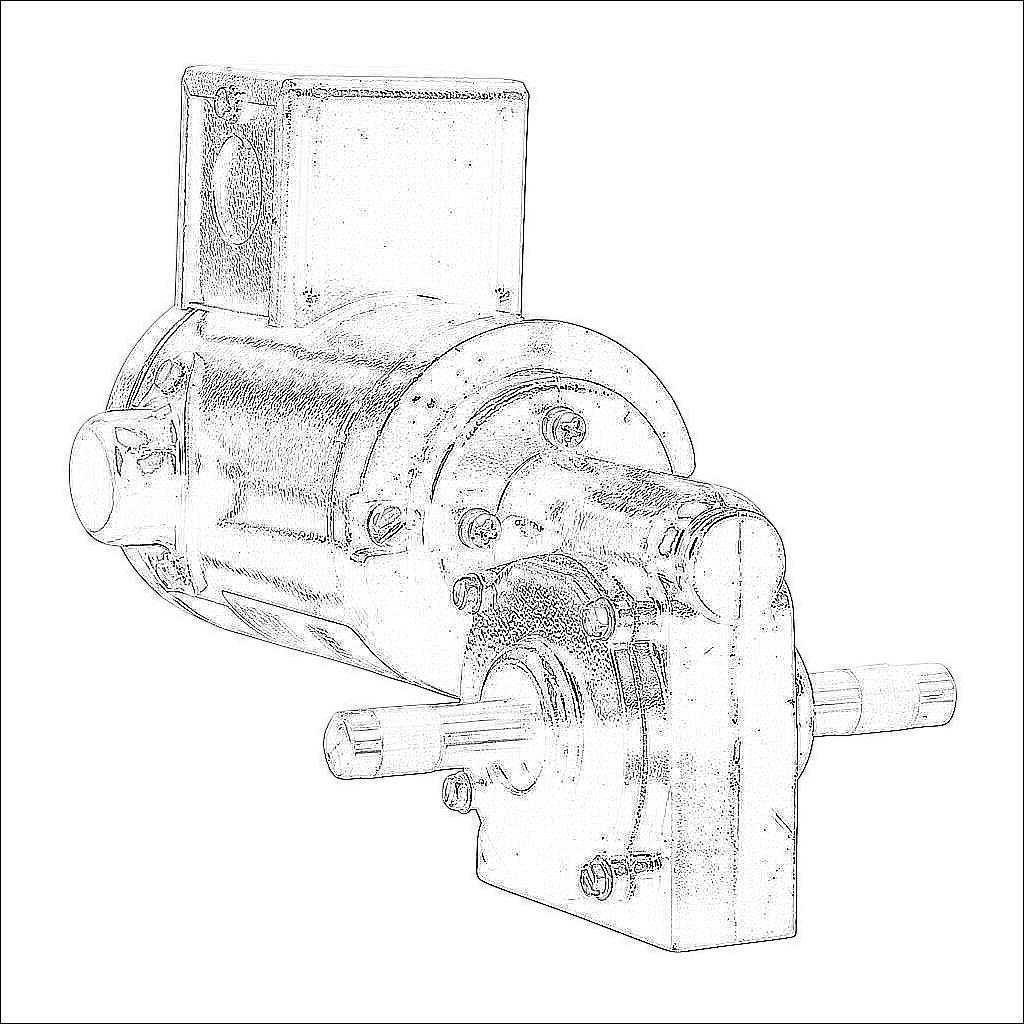

| Item | Motor | |
| Series | MTGR | |
| Motor Type | Gear | |
| Gear Motor Orientation | Right angle dual | |
| Voltage Type | DC | |
| Horsepower Rating | 1/15hp | |
| Voltage Rating | 12 VDC | |
| Nameplate RPM | 84rpm | |
| Full Load Torque | 34 lb-in | |
| Full Load Amperage | 6.78 | |
| Gear Ratio | 20.5:1 | |
| Shaft Diameter | 1/2in | |
| IP Rating | IP40 | |
| Insulation Class | Class F | |
| Electrically Reversible | Yes | |
| Enclosure Type | TENV | |
| Mounting | Foot | |
