| Technical Data | ||
|---|---|---|

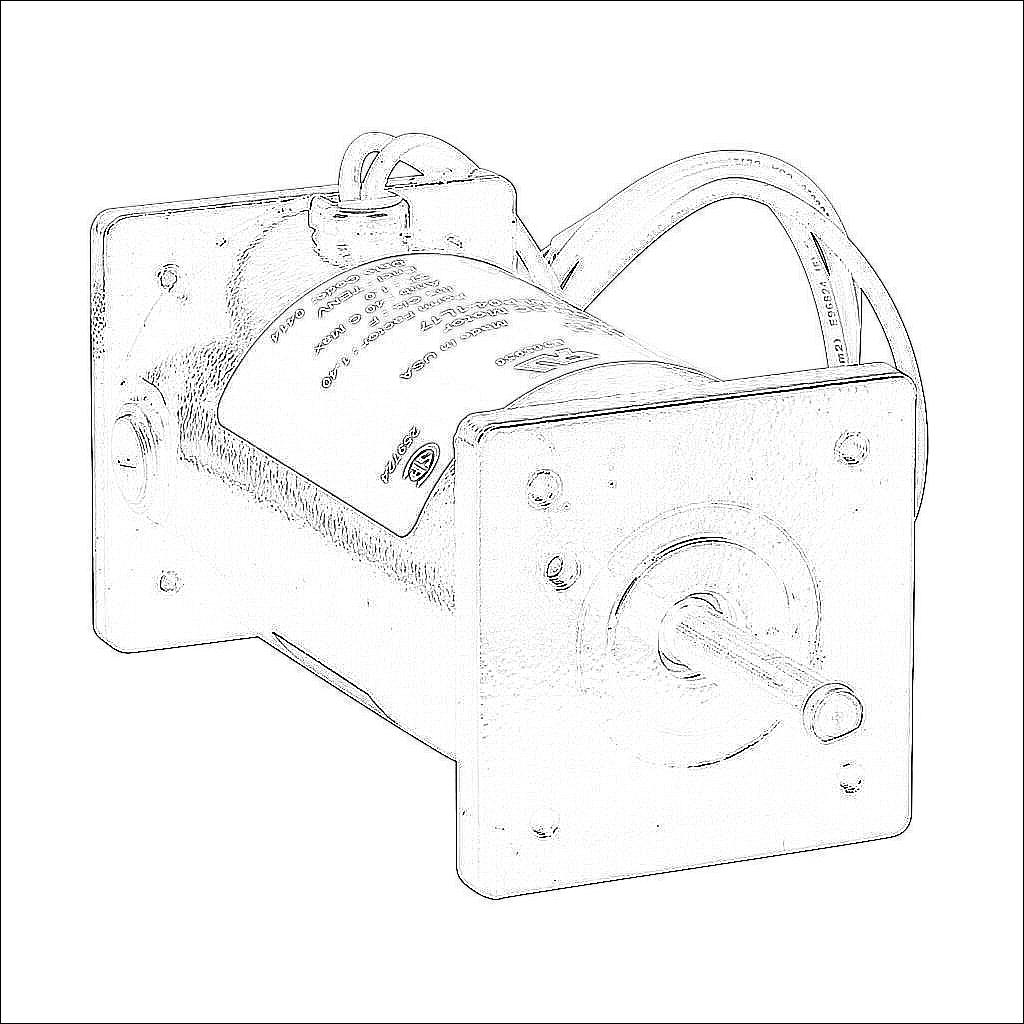

| Brand | IronHorse | |
| Item | Motor | |
| Series | MTPM | |
| Voltage Type | DC | |
| Motor Type | Permanent magnet | |
| Motor Application | SCR-PWM rated | |
| Horsepower Rating | 1/26hp | |
| Voltage Rating | 90 VDC | |
| Synchronous Speed | 1749rpm | |
| Nameplate RPM | 1749rpm | |
| Overload Type | None | |
| Enclosure Type | TENV | |
| Shaft Type | Round full flat with keyway | |
| Shaft Diameter | 5/16in | |
| Shaft Material | 1215 cold rolled steel | |
| Motor Frame | Small | |
| Frame Material | Rolled steel | |
| Electrically Reversible | Yes | |
| Insulation Class | Class F | |
| IP Rating | IP40 | |
| Service Factor | 1.0 | |
| Integrated Brake | No | |
| Mounting | Flange | |
| Mounting Orientation | Horizontal or vertical | |
| Additional Information | 18in leads | |
