| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

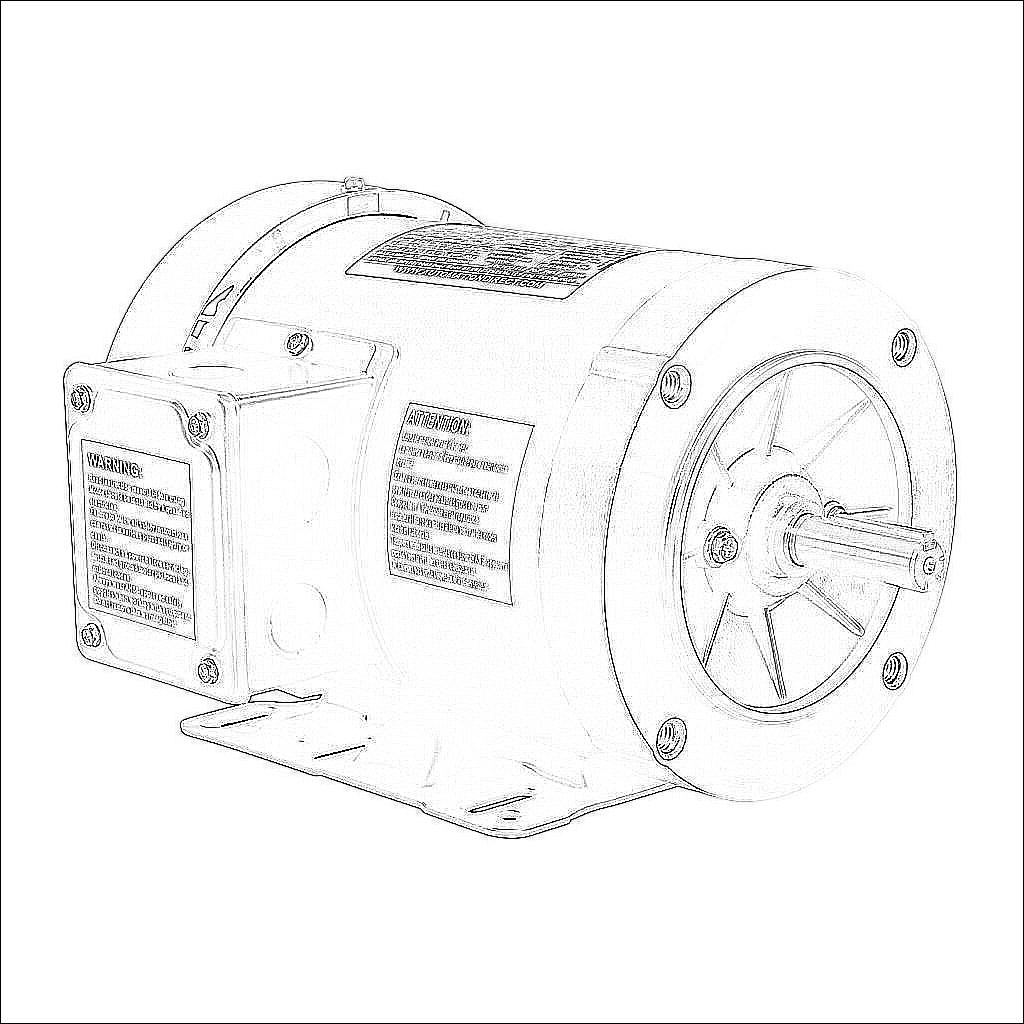

| Item | Motor | |
| Series | MTR | |
| Efficiency Group | Standard efficiency | |
| Efficiency | 71.5 | |
| Voltage Type | AC | |
| Motor Type | Induction | |
| Motor Application | General purpose and inverter rated | |
| Horsepower Rating | 3/4hp | |
| Number of Phases | 3 | |
| Voltage Rating | 230/460 VAC | |
| Synchronous Speed | 3600rpm | |
| Nameplate RPM | 3450rpm | |
| Overload Type | None | |
| Enclosure Type | TEFC | |
| Shaft Type | Round with square key | |
| Shaft Diameter | 5/8in | |
| Shaft Material | 1045 hot rolled (C-204) steel | |
| Motor Frame | NEMA 56C | |
| Frame Material | Rolled steel | |
| Electrically Reversible | Yes | |
| Insulation Class | Class F | |
| IP Rating | IP43 | |
| Constant Torque Rating | 4:1 | |
| Variable Torque Rating | 10:1 | |
| Service Factor | 1.15 | |
| Integrated Brake | No | |
| NEMA Design | Design B | |
| Junction Box Orientation | F1 | |
| Mounting | C-face/removable rigid base | |
| Mounting Orientation | Horizontal or vertical | |
