| Technical Data | ||
|---|---|---|
| Brand | Patlite | |

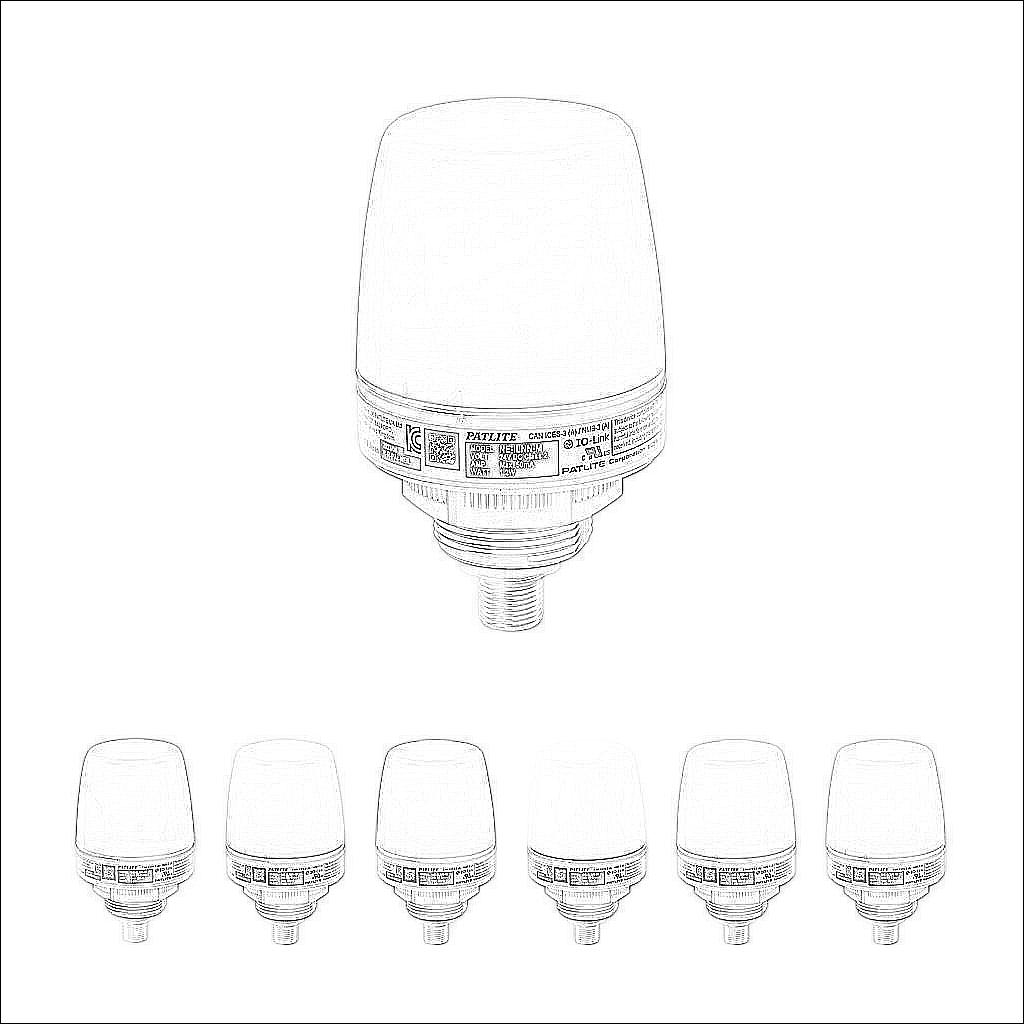

| Item | Industrial signal beacon | |
| Bulb Type | LED | |
| Series | NE-IL | |
| Operator Size | 56mm | |
| Operator Color | White | |
| Light Color(s) | Red/amber/green/blue/white/cyan/purple | |
| Light Function | Selectable permanent, flashing, double flash or triple flash | |
| Housing Material | Polycarbonate | |
| Mounting | Base | |
| IP Rating | IP65 | |
| Connection | 5-pin M12 quick-disconnect | |
| Touch to Acknowledge | No | |
| Voltage Rating | 24 VDC | |
| Communication Port and Connection Type(s) | (1) 5-pin M12 A-coded (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Requires | 5-pin female M12 cable | |
