NS711YH02C9HJ5

NS711YH02C9HJ5

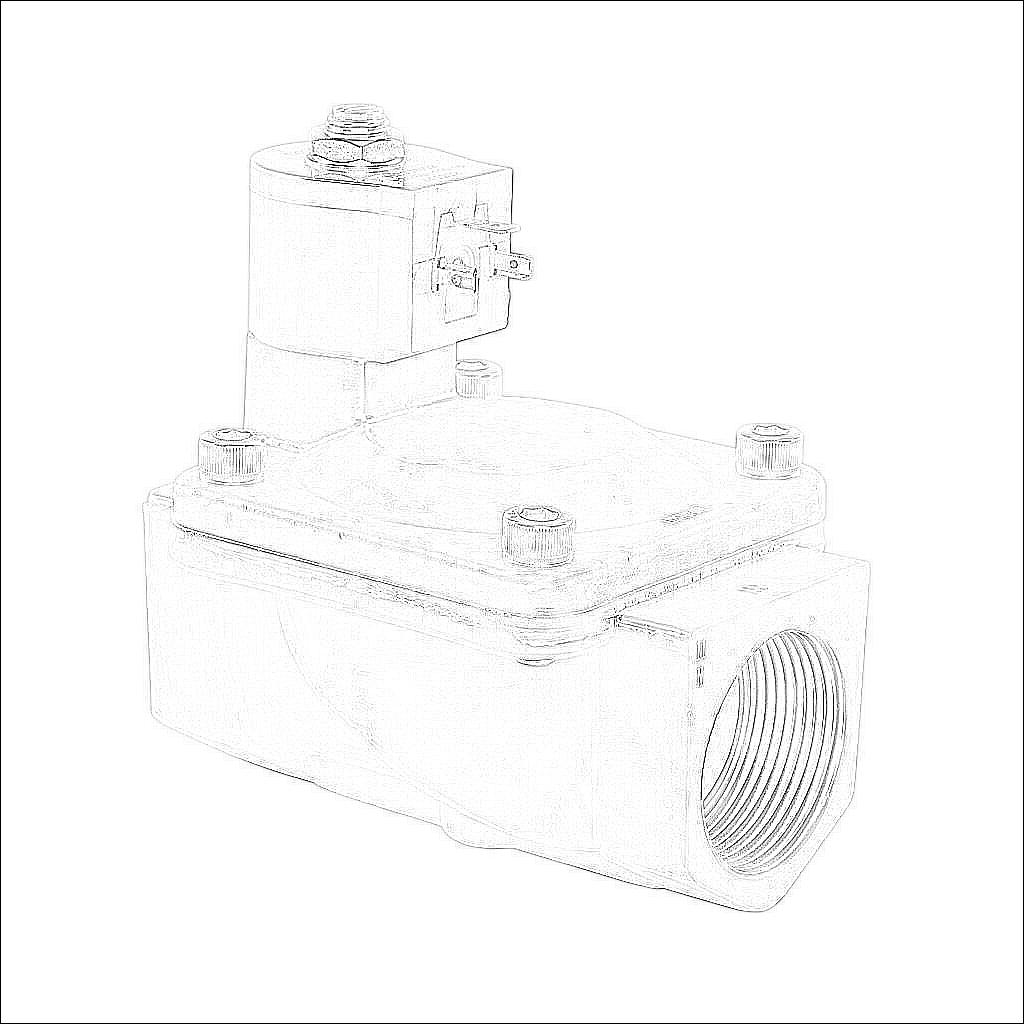

GC Valves potable water solenoid valve, 2-port (2-way), 2-position, N.C., lead-free brass body, EPDM rubber seal(s), 1-1/2in female NPT inlet(s), 1-1/2in female NPT outlet(s), Cv=30, 120 VAC operating voltage, 8W, NSF/ANSI 61.

$581.25
/
Technical Data
BrandGC Valves
ItemValve
Working FluidPotable water
Valve TypeSolenoid process
NEMA Rating4
Port Quantity2-port (2-way)
Number Of Positions2
Valve ConfigurationN.C.
ActionPiloted diaphragm
Body MaterialLead-free brass
Seal MaterialEPDM rubber
Inlet Port1-1/2in female NPT
Outlet Port1-1/2in female NPT
Flow Coefficient30
Minimum Operating Pressure8 psi
Maximum Operating Pressure200 psi
Working Fluid Temperature180 deg F maximum
Operating Voltage120 VAC
Power Rating8W
Electrical Connection18mm DIN style wiring plug
Potable Water CertificationsNSF/ANSI 61
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
