NS711YH16C9GJ2

NS711YH16C9GJ2

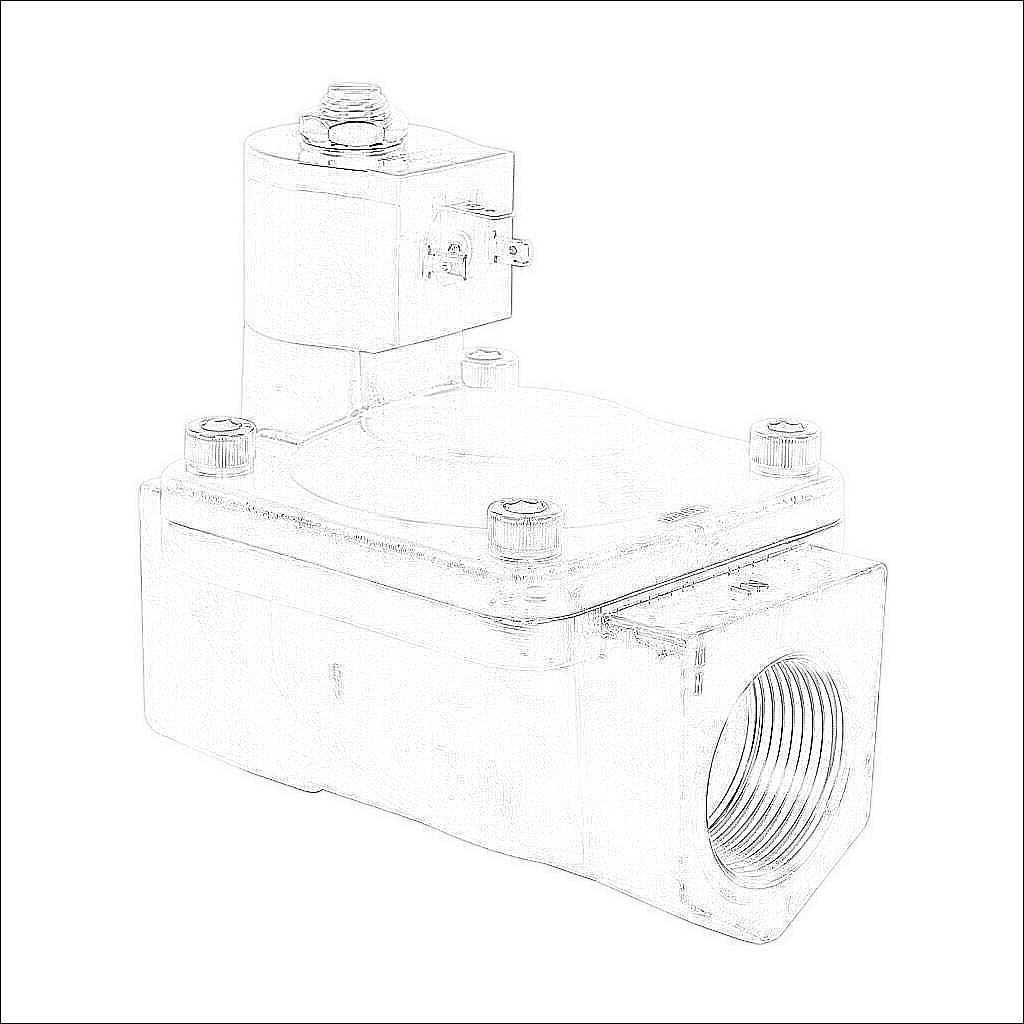

GC Valves potable water solenoid valve, 2-port (2-way), 2-position, N.C., lead-free brass body, EPDM rubber seal(s), 1-1/4in female NPT inlet(s), 1-1/4in female NPT outlet(s), Cv=22, 24 VDC operating voltage, 9W, NSF/ANSI 61.

$561.25
/
Technical Data
BrandGC Valves
ItemValve
Working FluidPotable water
Valve TypeSolenoid process
NEMA Rating4
Port Quantity2-port (2-way)
Number Of Positions2
Valve ConfigurationN.C.
ActionPiloted diaphragm
Body MaterialLead-free brass
Seal MaterialEPDM rubber
Inlet Port1-1/4in female NPT
Outlet Port1-1/4in female NPT
Flow Coefficient22
Minimum Operating Pressure8 psi
Maximum Operating Pressure150 psi
Working Fluid Temperature180 deg F maximum
Operating Voltage24 VDC
Power Rating9W
Electrical Connection18mm DIN style wiring plug
Potable Water CertificationsNSF/ANSI 61
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
