NS712YH02C9CG1

NS712YH02C9CG1

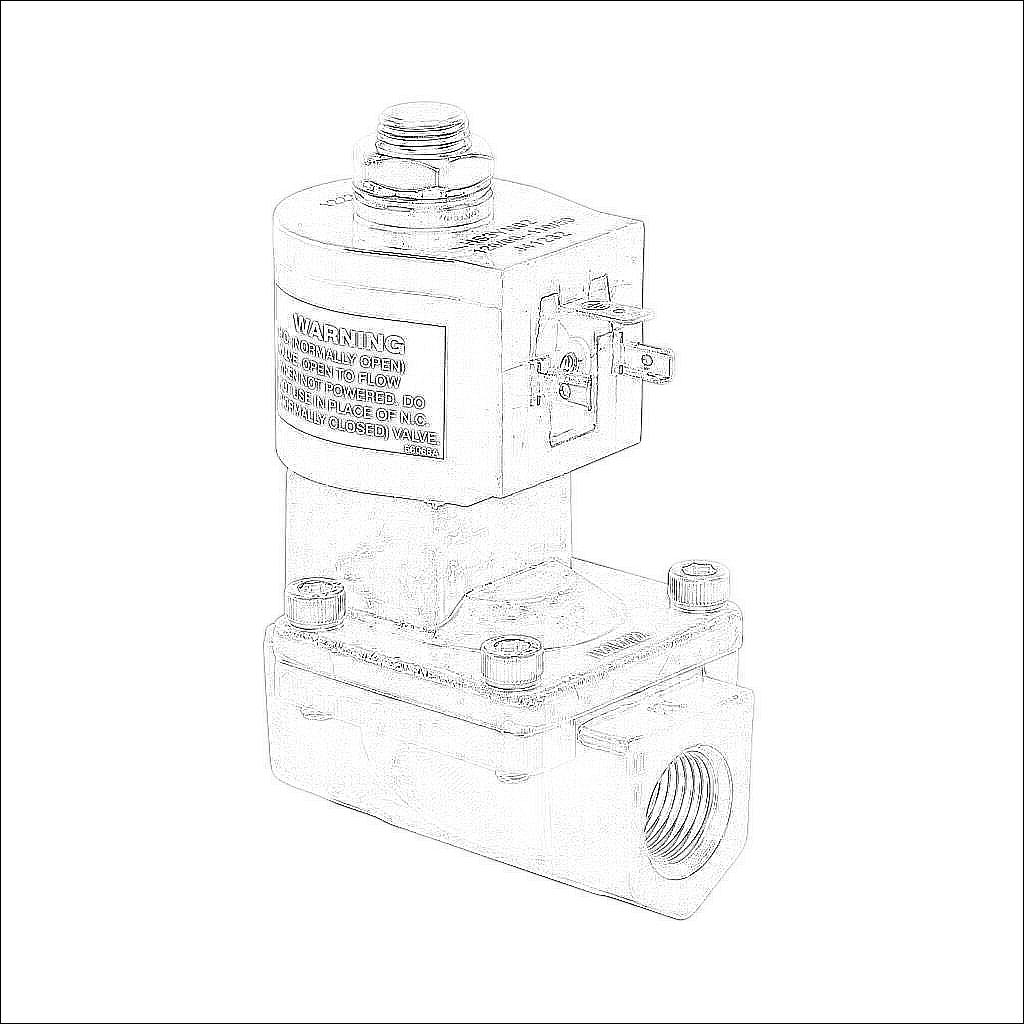

GC Valves potable water solenoid valve, 2-port (2-way), 2-position, N.O., lead-free brass body, EPDM rubber seal(s), 3/8in female NPT inlet(s), 3/8in female NPT outlet(s), Cv=4.3, 120 VAC operating voltage, 8W, NSF/ANSI 61.

$243.75
/
Technical Data
BrandGC Valves
ItemValve
Working FluidPotable water
Valve TypeSolenoid process
NEMA Rating4
Port Quantity2-port (2-way)
Number Of Positions2
Valve ConfigurationN.O.
ActionPiloted diaphragm
Body MaterialLead-free brass
Seal MaterialEPDM rubber
Inlet Port3/8in female NPT
Outlet Port3/8in female NPT
Flow Coefficient4.3
Minimum Operating Pressure7 psi
Maximum Operating Pressure200 psi
Working Fluid Temperature180 deg F maximum
Operating Voltage120 VAC
Power Rating8W
Electrical Connection18mm DIN style wiring plug
Potable Water CertificationsNSF/ANSI 61
