| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

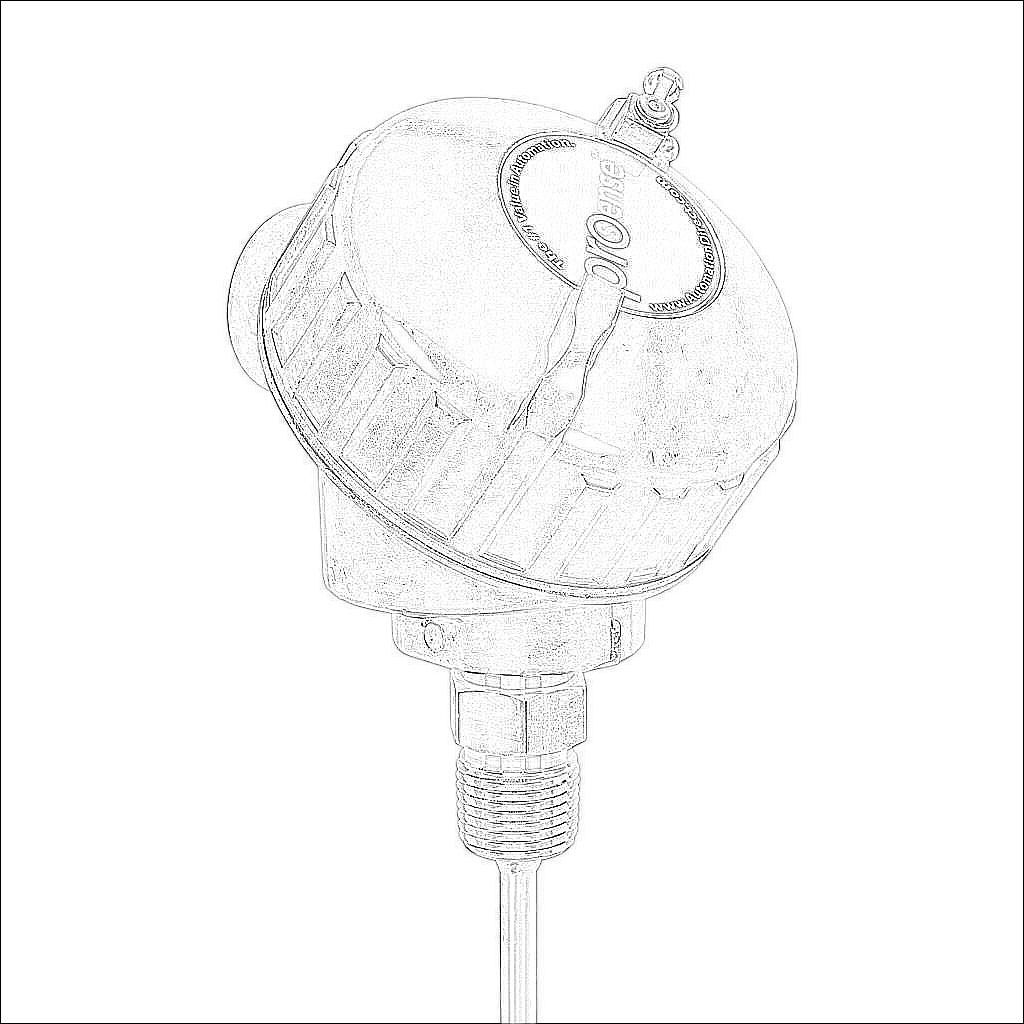

| Item | Temperature sensor | |
| Sensor Element | 10K Type 3 thermistor | |
| Sensor Type | Connection head probe | |
| Media Type | Liquid, water, oil, chemicals, gases and air | |
| Accuracy | +/-0.36 deg F (0.2 deg C) | |
| Insertion Length | 18in | |
| Probe Diameter | 1/4in | |
| Sheath Material | Stainless steel | |
| Process Connection | 1/2in male NPT | |
| Electrical Connection | Aluminum screw cover head with 2ft 24 AWG wire leads | |
| Conductor Insulation Material | PVC | |
| Temperature Sensing Range | -40 to 257 deg F | |
| IP Rating | IP66 | |
| NEMA Rating | 4X | |
