| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

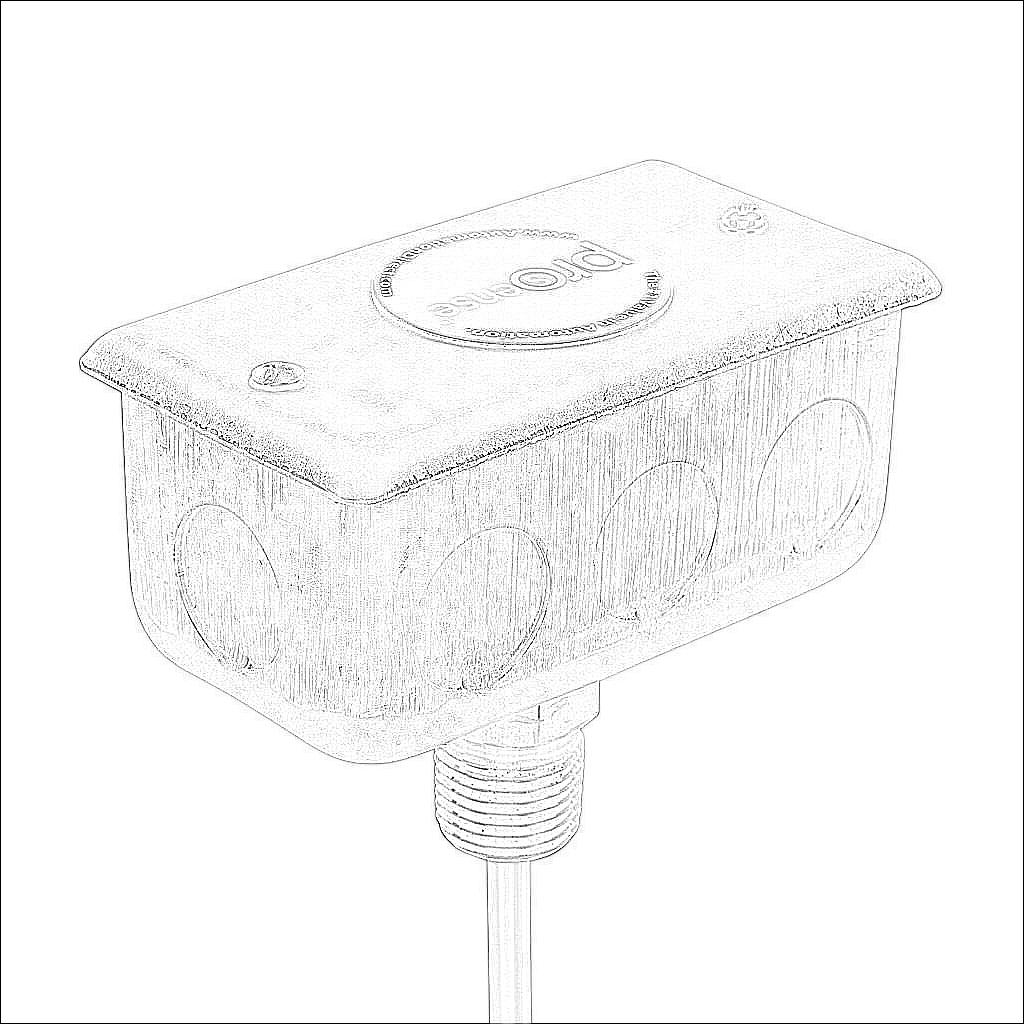

| Item | Temperature sensor | |
| Sensor Element | 10K Type 3 thermistor | |
| Sensor Type | Junction box spring-loaded probe | |
| Accuracy | +/-0.36 deg F (0.2 deg C) | |
| Insertion Length | 4in | |
| Probe Diameter | 1/4in | |
| Sheath Material | Stainless steel | |
| Process Connection | 1/2in male NPT | |
| Electrical Connection | 2 x 4in junction box with 2ft 24 AWG wire leads | |
| Conductor Insulation Material | PVC | |
| Temperature Sensing Range | -40 to 257 deg F | |
| For Use With | Thermowells | |
