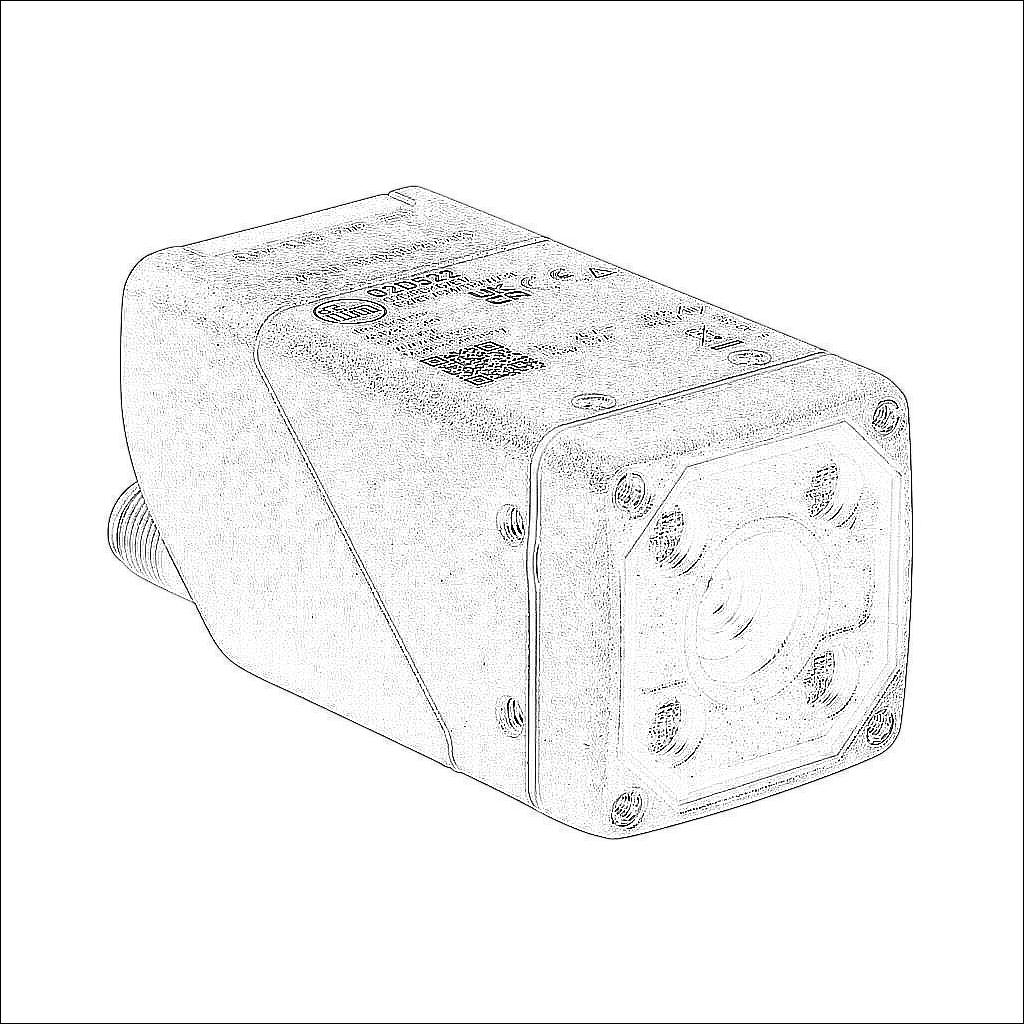

| Technical Data | ||
|---|---|---|
| Brand | ifm efector | |
| Series | O2D | |
| Item | 2D vision camera | |
| Operating Distance | 35-2500mm | |
| Lens Mount | Fixed | |
| Lens Type | Wide angle | |
| Focus Type | Automatic | |
| Inspection Tools | Localization, detection and counting | |
| View Area 1 | 25 x 19mm @ 35mm | |
| View Area 2 | 1504 x 1128mm @ 2500mm | |
| Response Time | 40fps | |
| Resolution | 1280 x 960 | |
| Light Emission | Infrared | |
| Input | (3) NPN or PNP | |
| Output | (5) NPN or PNP | |
| IP Rating | IP65 | |
| Housing Material | Die-cast zinc | |
| Housing Size | 45 x 45 x 86mm body | |
| Lens Material | Gorilla Glass | |
| Operating Voltage | 18-30 VDC | |
| Operating Temperature | -10 to 50 deg C | |
| Connection | (1) 8-pin M12 quick-disconnect and (1) 4-pin M12 D-coded | |
| Port Protocol(s) | TCP/IP and EtherNet/IP | |
| Additional Information | Purchase cable separately | |
