O2I501

O2I501

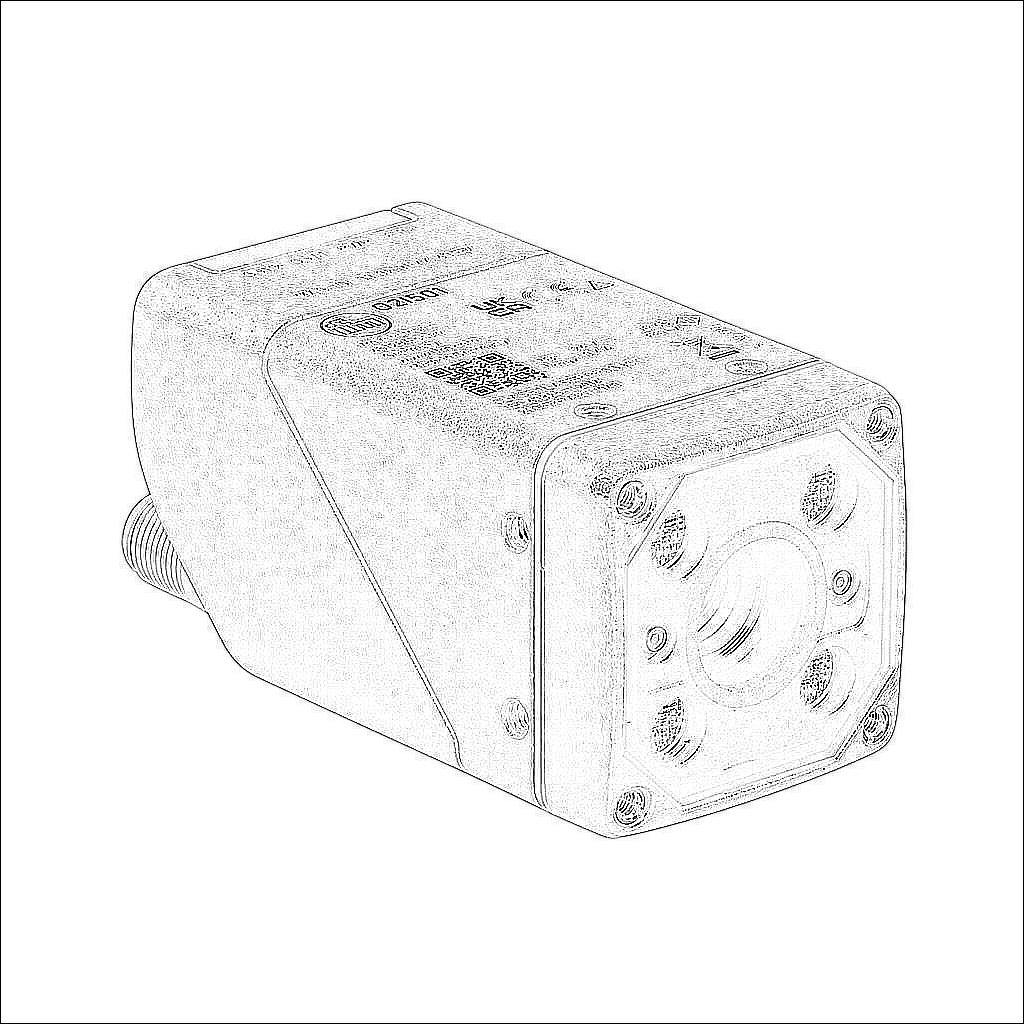

ifm efector O2I series barcode scanner, industrial machine mount, 1D and 2D, imager, infrared light emission, standard lens, 1280 x 960 optical resolution, TCP/IP and EtherNet/IP, IP65.

$1,795
/
Technical Data
Brandifm efector
ItemBarcode scanner
SeriesO2I
Form FactorIndustrial machine mount
Scanner Capability1D and 2D
Scanner TypeImager
Focus TypeAutomatic
Connection(1) 5-pin M12 quick-disconnect and (1) 4-pin M12 D-coded
Port Protocol(s)TCP/IP and EtherNet/IP
Duty RatingRugged duty
Lens TypeStandard
Light EmissionInfrared
Input(1) NPN or PNP
Output(2) NPN or PNP
Optical Resolution1280 x 960
Inspection ToolsRead code
Decode Capability
  • 1D: Codabar, Code 128, Code 39, Code 93, EAN13, EAN13 Add-On 2, EAN13 Add-On 5, EAN8, EAN8 Add-On 2, EAN8 Add-On 5, GS1 - 128, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, Industrial 2-of-5, Interleaved 2-of-5, MSI Barcode, Pharmacode, UPC-A, UPC-A Add-On 2, UPC-A Add-On 5, UPC-E, UPC-E Add-On 2, UPC-E Add-On 5
  • 1D Stacked: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, PDF-417
  • 2D: Aztec Code, Data Matrix (ECC200), GS1 Aztec Code, GS1 ECC200, GS1 QR Code, Micro-QR, QR
Operating Distance85-1000mm
View Area 128 x 21mm @ 85mm
View Area 2302 x 227mm @ 1000mm
Response Time40fps
IP RatingIP65
Housing MaterialDie-cast zinc
Housing Size45 x 45 x 86mm body
Lens MaterialGorilla Glass
Operating Voltage18-30 VDC
Operating Temperature-10 to 50 deg C
Additional InformationPurchase cable separately
