| Technical Data | ||
|---|---|---|
| Brand | ifm efector | |
| Series | O3D | |

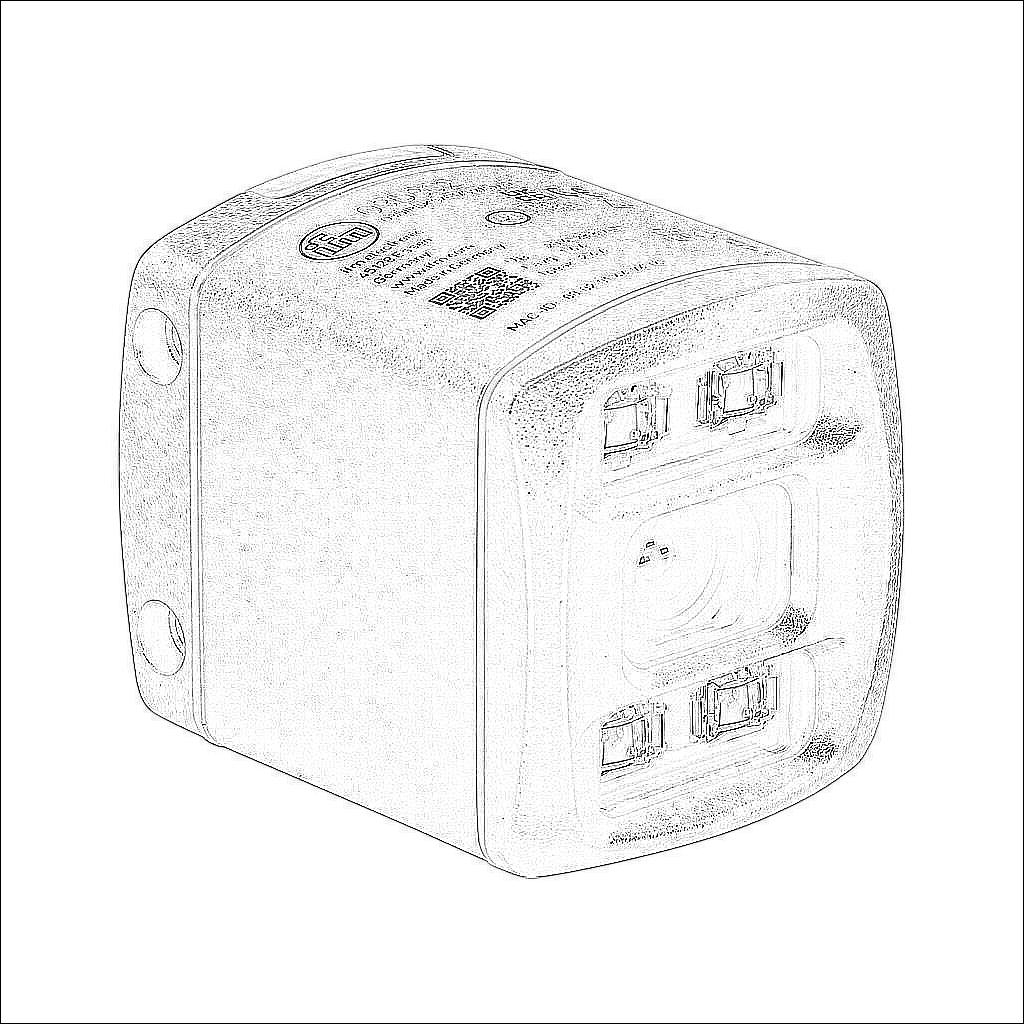

| Item | 3D vision sensor | |
| Operating Distance | 500-5000mm | |
| Lens Type | Standard | |
| View Area 1 | 0.37 x 0.5m @ 0.5m | |
| View Area 2 | 3.7 x 5.0m @ 5m | |
| Response Time | 25Hz | |
| Resolution | 176 x 132 | |
| Light Emission | Infrared | |
| Input | (2) NPN or PNP | |
| Output | (1) 4-20 mA or 0-10 VDC | |
| IP Rating | IP65 | |
| Housing Material | Die-cast aluminum | |
| Housing Size | 65 x 72 x 82.6mm body | |
| Lens Material | Gorilla Glass | |
| Operating Voltage | 20.4-28.8 VDC | |
| Operating Temperature | -10 to 50 deg C | |
| Connection | (1) 8-pin M12 quick-disconnect and (1) 4-pin M12 D-coded | |
| Port Protocol(s) | TCP/IP and EtherNet/IP | |
| Additional Information | Purchase cable separately | |
