| Technical Data | ||
|---|---|---|
| Brand | di-soric | |

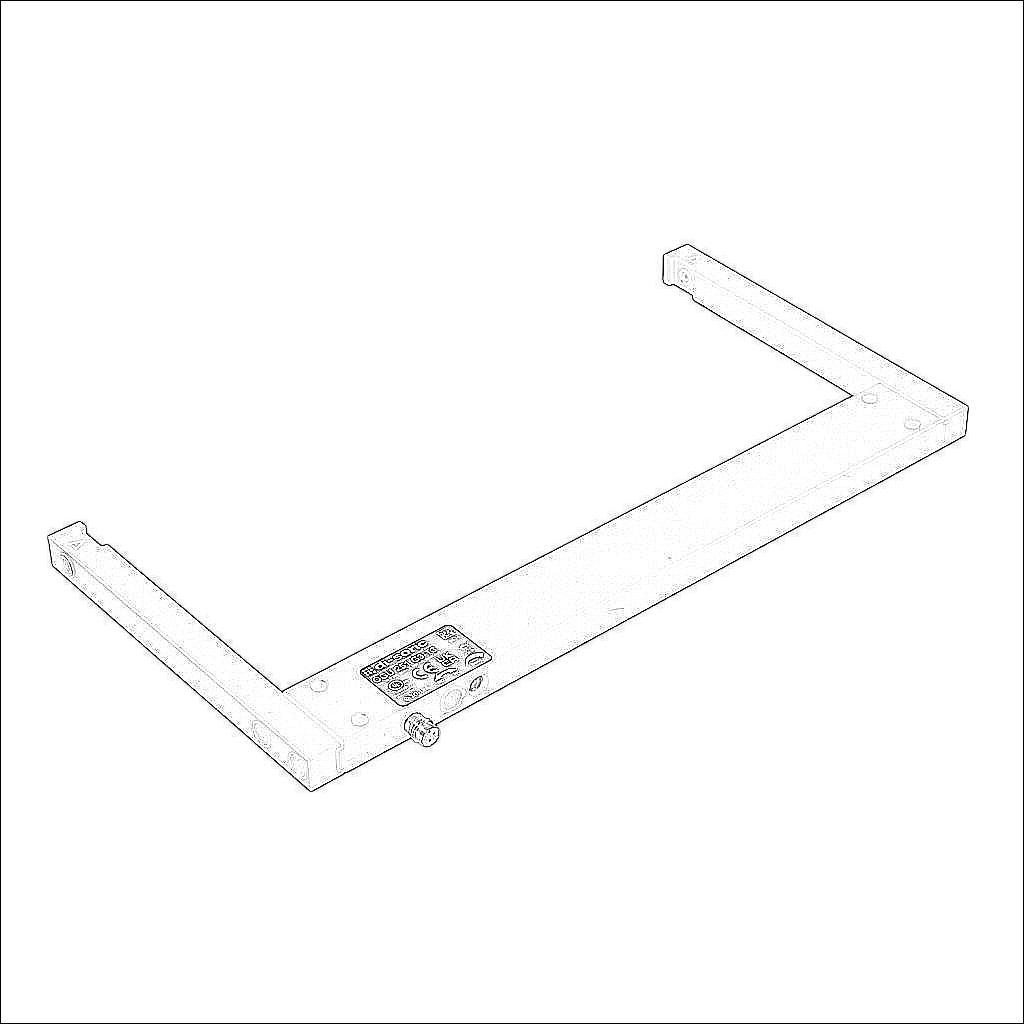

| Item | Photoelectric fork sensor | |
| Shape | U-frame | |
| Housing Size | 274 x 140 x 12mm | |
| IP Rating | IP67 | |
| Application | Standard duty and IO-Link | |
| Housing Material | Aluminum | |
| Sensing Method | Through-beam | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 3 | |
| Switching Output | Push-pull NPN or PNP | |
| Sensing Distance | 0-250mm | |
| Sensitivity | Potentiometer | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 6.5 kHz | |
| Light Emission | Visible red | |
| IO-Link Compatible | Yes | |
| Connection | 3-pin M8 quick-disconnect | |
| Communication Port and Connection Type(s) | (1) 3-pin M8 (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Additional Information | Purchase cable separately | |
