| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

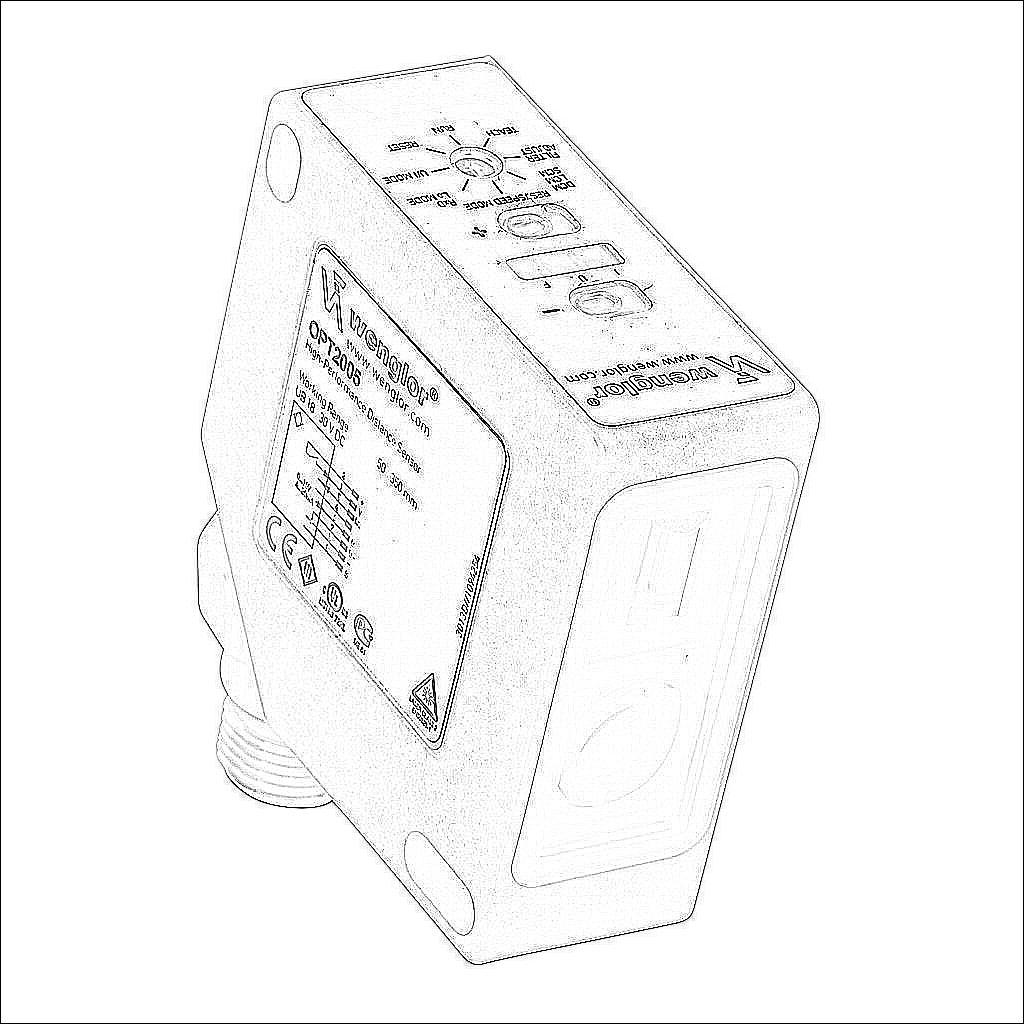

| Item | Photoelectric sensor | |
| Shape | Square | |
| Housing Size | 50 x 50 x 20mm | |
| IP Rating | IP67 | |
| Application | Laser, measurement, standard duty and analog output | |
| Housing Material | Polycarbonate | |
| Sensing Method | Diffuse | |
| Sensor Type | Distance measuring | |
| Operating Voltage | 18-30 VDC | |
| Analog Output | 0-10 VDC or 4-20 mA | |
| Sensing Distance | 50-350mm | |
| Sensitivity | Teach-in button | |
| Measuring Rate | 800/s | |
| Light Emission | Class 2 red laser | |
| User Interface | Pushbutton user interface | |
| Connection | 8-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
