| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

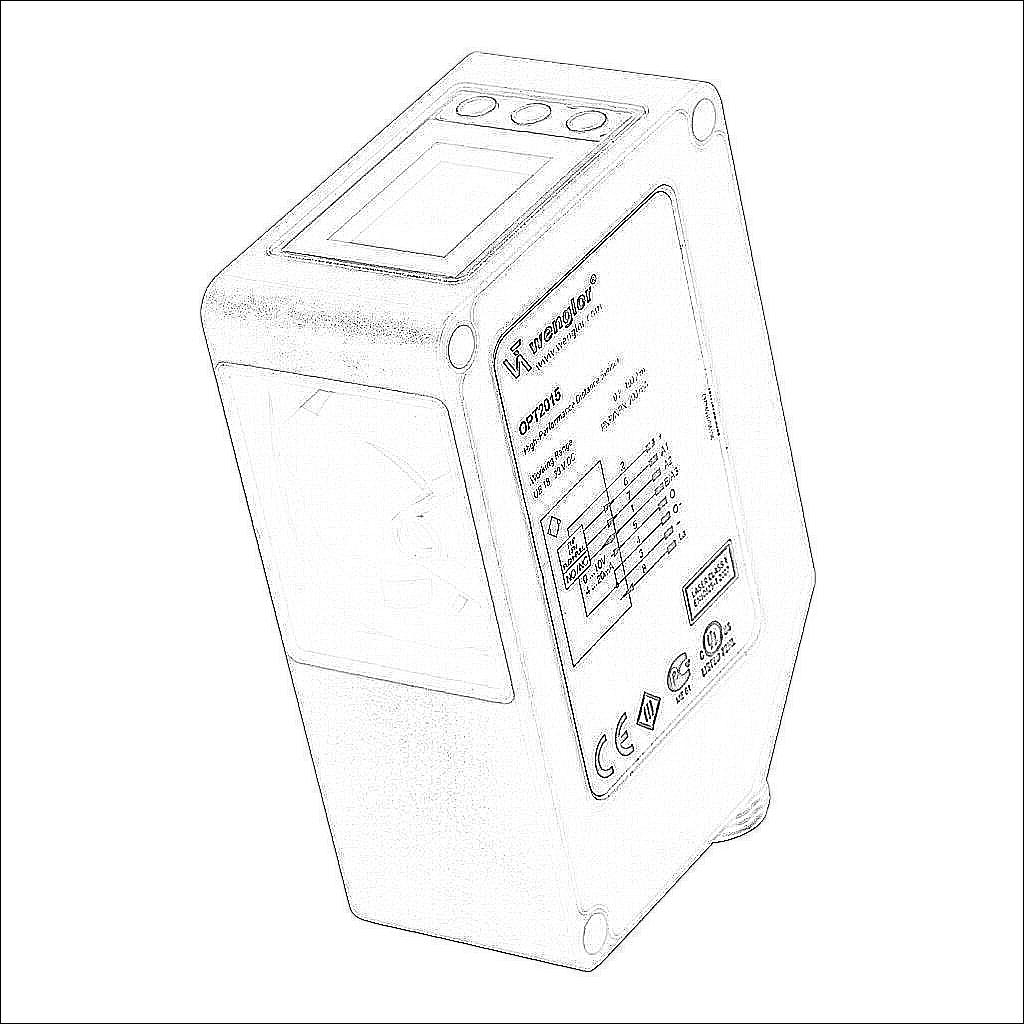

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 81 x 55 x 30mm | |
| IP Rating | IP68 | |
| Application | Laser, measurement, standard duty, long range and analog output | |
| Housing Material | Polycarbonate | |
| Sensing Method | Retroreflective | |
| Sensing Technology | Time of Flight technology | |
| Sensor Type | Distance measuring | |
| Operating Voltage | 18-30 VDC | |
| Switching Output | NPN/PNP | |
| Analog Output | 0-10 VDC or 4-20 mA | |
| Sensing Distance | 0.2-100.2m | |
| Sensitivity | Teach-in button | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 50 Hz | |
| Measuring Rate | 1-100/s | |
| Light Emission | Class 1 red laser | |
| User Interface | Pushbutton user interface with display | |
| Connection | 8-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
