| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

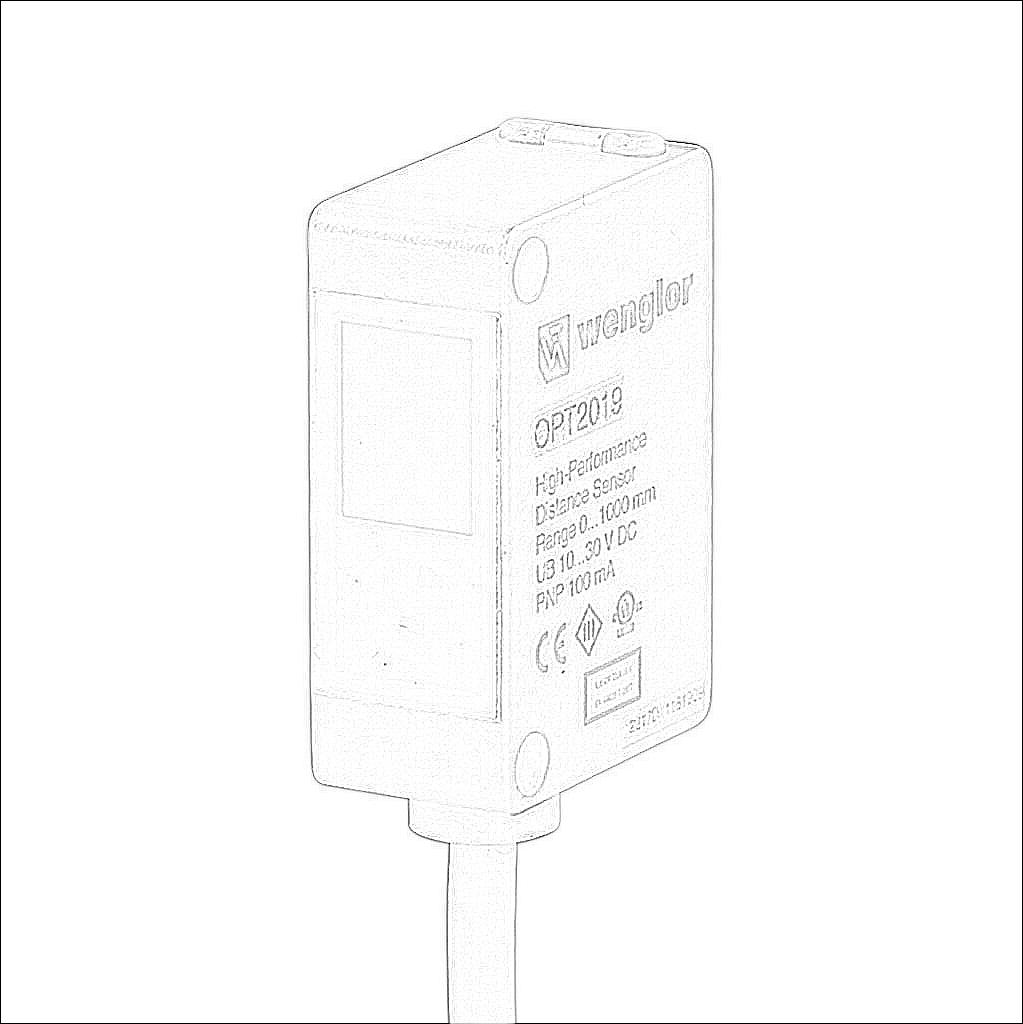

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 32 x 22 x 12mm | |
| IP Rating | IP67 | |
| Application | Laser and standard duty | |
| Housing Material | Polycarbonate | |
| Sensing Method | Diffuse with background suppression | |
| Sensing Technology | Time of Flight technology | |
| Operating Voltage | 10-30 VDC | |
| Switching Output | PNP | |
| Sensing Distance | 0-1m | |
| Sensitivity | Teach-in button | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 1 kHz | |
| Light Emission | Class 1 red laser | |
| User Interface | Potentiometer adjustment | |
| Cable Length | 6.5ft/2m | |
| Connection | Pigtail | |
