| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

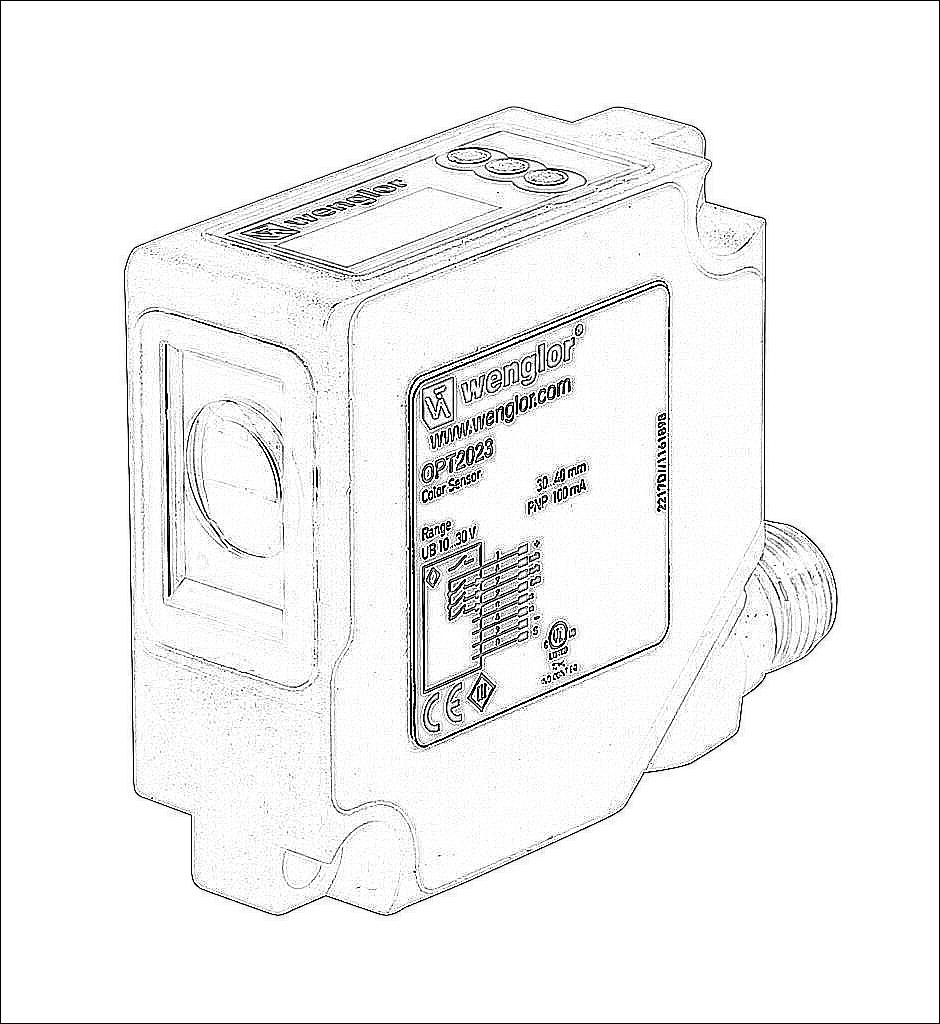

| Item | Color sensor | |
| Shape | Square | |
| Housing Size | 50 x 50 x 20mm | |
| IP Rating | IP68 | |
| Housing Material | Plastic | |
| Sensing Method | Diffuse | |
| Operating Voltage | 10-30 VDC | |
| Switching Output | NPN/PNP | |
| Sensing Distance | 30-40mm | |
| Sensitivity | Teach-in button | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 1.8 kHz | |
| Light Emission | White | |
| IO-Link Compatible | No | |
| Connection | 8-pin M12 quick-disconnect | |
| Standard I/O Mode Supported | No | |
| Additional Information | Purchase cable separately | |
