| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

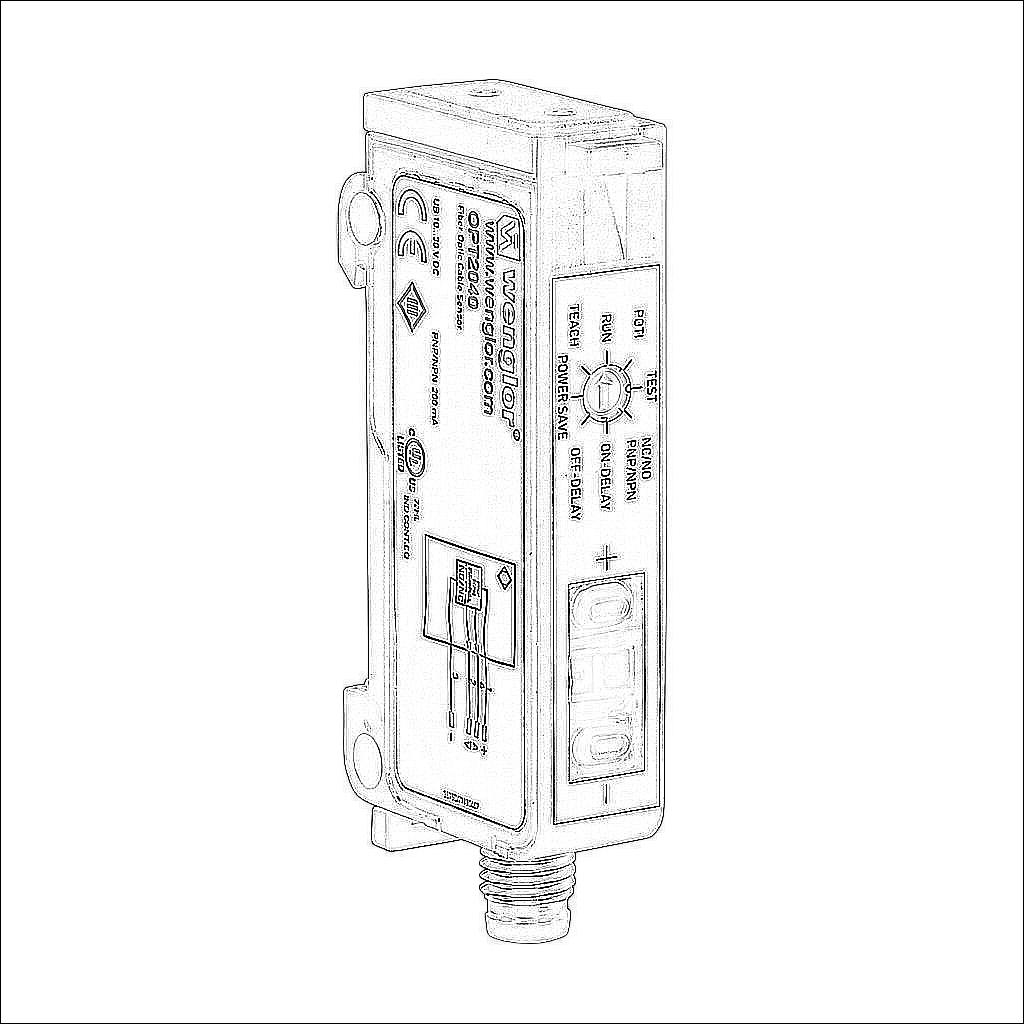

| Item | Fiber amplifier | |
| Shape | Rectangular | |
| Number Of Channels | 1 | |
| User Interface | Pushbutton user interface | |
| Switching Output | NPN/PNP | |
| Operation Mode | Programmable switching, impulse or time delay outputs | |
| Sensitivity Adjustment | Teach-in sensitivity adjustment | |
| IO-Link Compatible | No | |
| Operating Voltage | 10-30 VDC | |
| Housing Material | Plastic | |
| Housing Size | 12 x 30 x 68mm | |
| Connection | 4-pin M8 quick-disconnect | |
| Mounting | 35mm DIN rail | |
| IP Rating | IP65 | |
| Switching Frequency | 2 kHz | |
| For Use With | Plastic cuttable or glass fibers | |
| Additional Information | Purchase fiber and connection cables separately | |
