| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

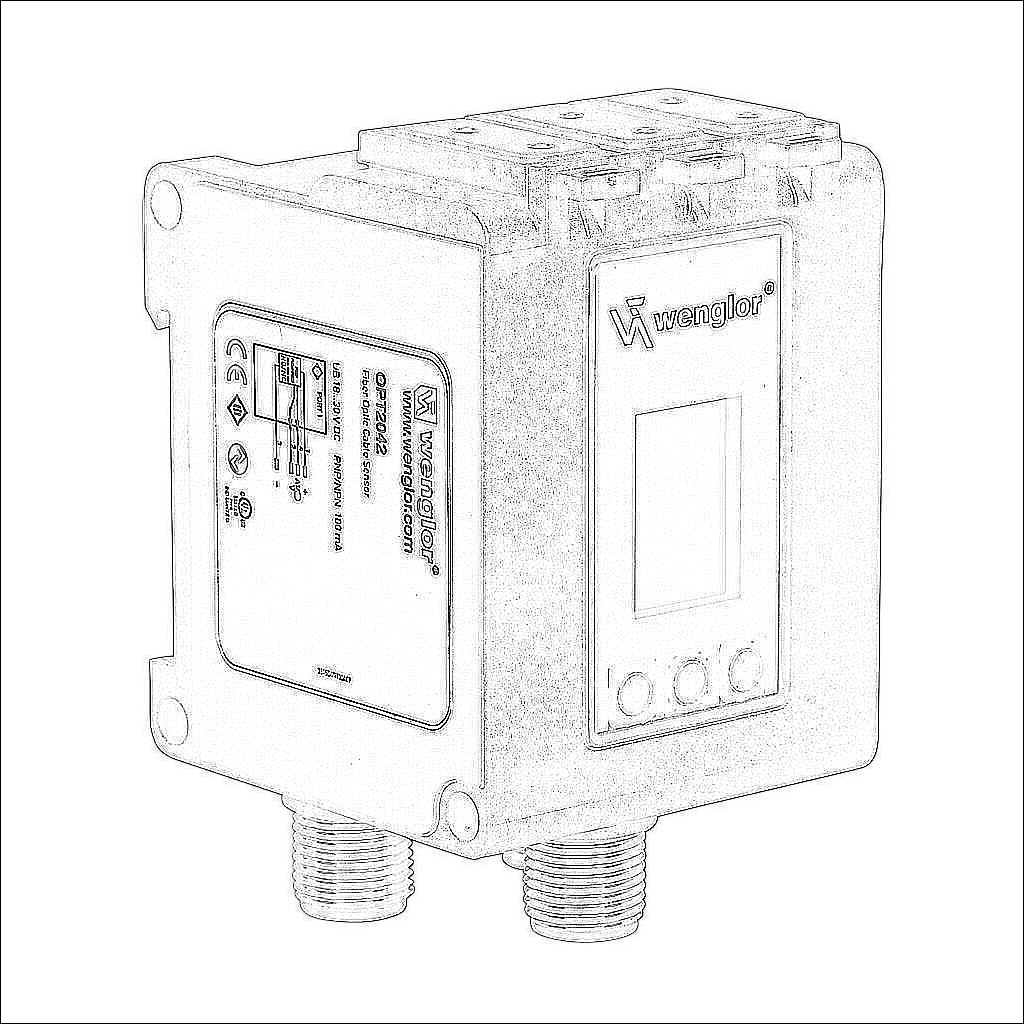

| Item | Fiber amplifier | |
| Shape | Rectangular | |
| Number Of Channels | 3 | |
| User Interface | Pushbutton user interface with display | |
| Switching Output | NPN/PNP | |
| Operation Mode | Programmable switching, impulse, time delay or measurement outputs | |
| Sensitivity Adjustment | Teach-in sensitivity adjustment | |
| IO-Link Compatible | Yes | |
| Operating Voltage | 18-30 VDC | |
| Housing Material | Plastic | |
| Housing Size | 51 x 56 x 80.6mm | |
| Connection | 4-pin and (2) 8-pin M12 quick-disconnect | |
| Communication Port and Connection Type(s) | (1) 4-pin M12 A-coded (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Mounting | 35mm DIN rail | |
| Application | Small space and standard duty | |
| IP Rating | IP50 | |
| Switching Frequency | 2 kHz | |
| For Use With | Plastic cuttable or glass fibers | |
| Additional Information | Purchase fiber and connection cables separately | |
