| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

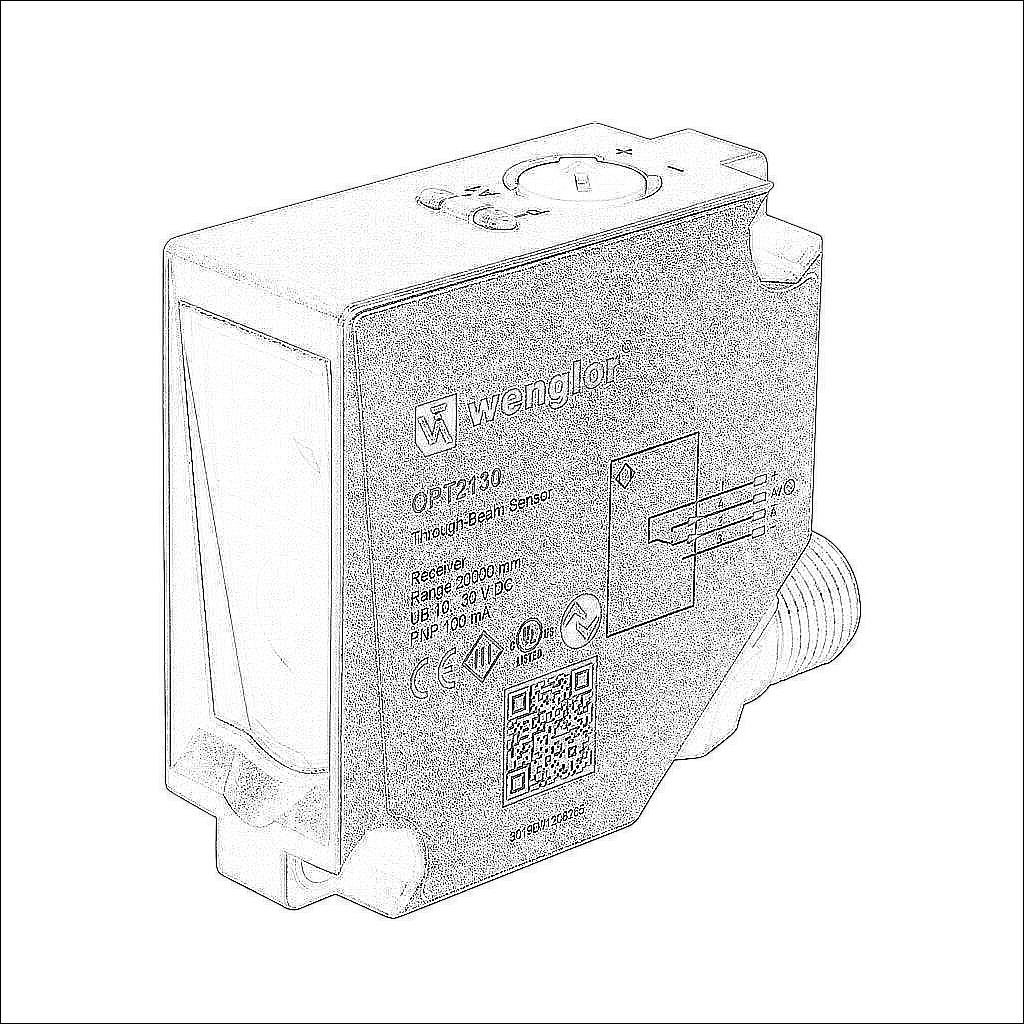

| Item | Photoelectric sensor | |
| Shape | Square | |
| Housing Size | 50 x 50 x 20mm | |
| IP Rating | IP67 IP68 | |
| Housing Material | Plastic | |
| Sensing Method | Through-beam receiver | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Sensing Distance | 0-20m | |
| Sensitivity | Potentiometer | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 1000 Hz | |
| IO-Link Compatible | Yes | |
| Connection | 4-pin M12 quick-disconnect | |
| Communication Port and Connection Type(s) | (1) 4-pin M12 A-coded (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
