| Technical Data | ||
|---|---|---|
| Brand | Wenglor | |

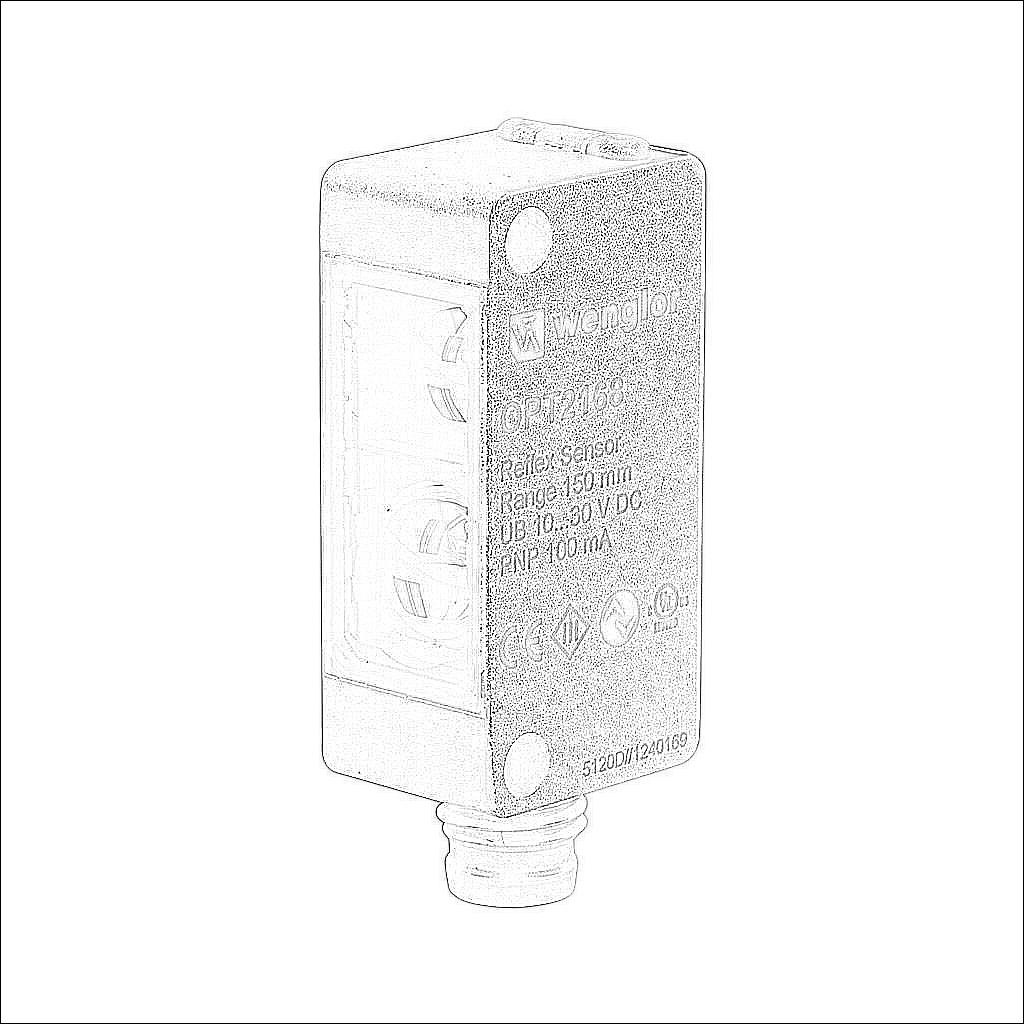

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 32 x 16 x 12mm | |
| IP Rating | IP67 IP68 | |
| Housing Material | Plastic | |
| Sensing Method | Diffuse with background suppression | |
| Sensing Technology | Shiny object detection | |
| Operating Voltage | 10-30 VDC | |
| Number of Wires | 4 | |
| Switching Output | PNP | |
| Sensing Distance | 30-150mm | |
| Sensitivity | Potentiometer | |
| Operation Mode | Complementary light-on/dark-on | |
| Switching Frequency | 1000 Hz | |
| Light Emission | Blue | |
| IO-Link Compatible | Yes | |
| Connection | 4-pin M8 quick-disconnect | |
| Communication Port and Connection Type(s) | (1) 4-pin M8 (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Additional Information | Purchase cable separately | |
