| Technical Data | ||
|---|---|---|

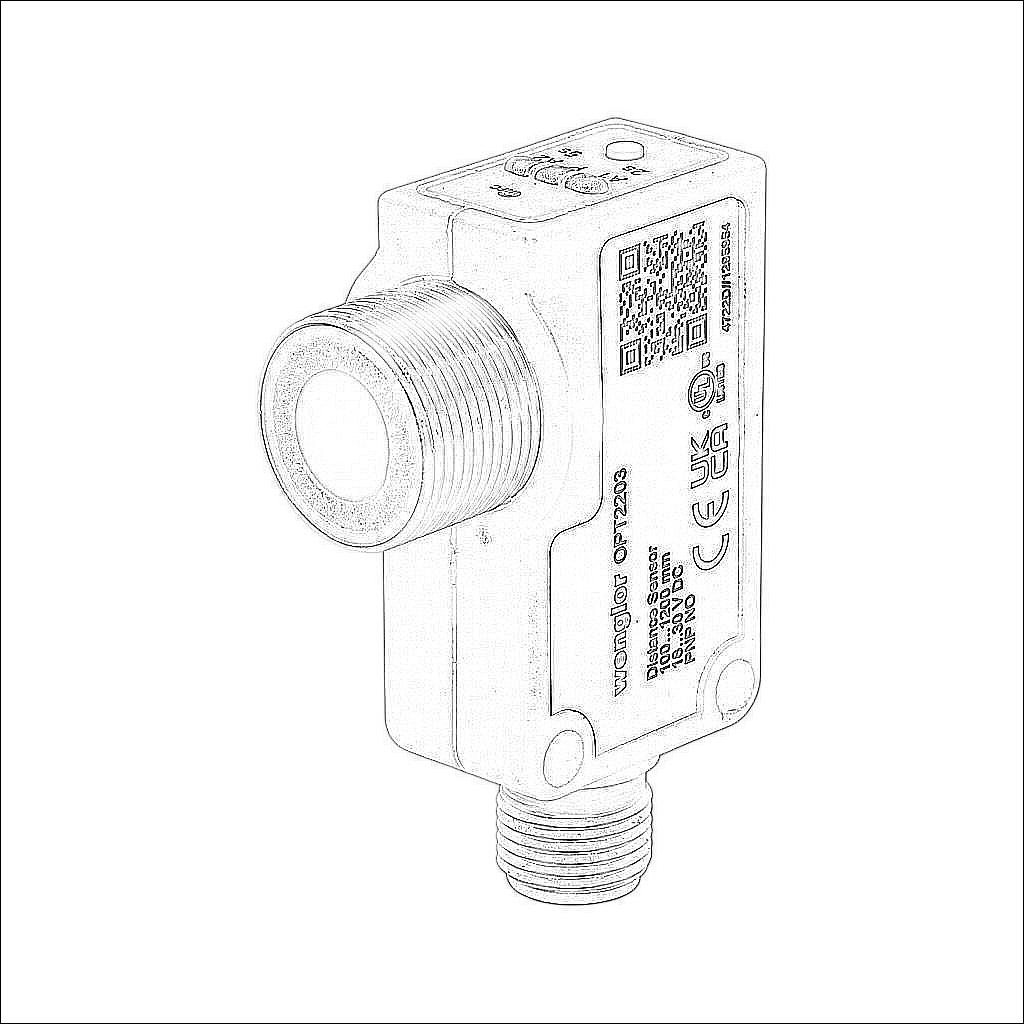

| Brand | Wenglor | |
| Item | Proximity sensor | |
| Sensor Type | Ultrasonic | |
| Application | Standard industrial | |
| Shape | Rectangular | |
| Housing Size | 56.5 x 16 x 35mm body | |
| Housing Material | Polybutylene terephthalate | |
| Sensing Method | Diffuse | |
| Adjustable | Yes | |
| Number of Wires | 5 | |
| Switching Output | PNP | |
| Operation Mode | N.O. | |
| Sensing Distance | 100-1200mm | |
| IO-Link Compatible | Yes | |
| Switching Frequency | 7 Hz | |
| Operating Voltage | 18-30 VDC | |
| Operating Temperature | -30 to 60 deg C | |
| IP Rating | IP67 IP68 | |
| Connection | 5-pin M12 quick-disconnect | |
| Communication Port and Connection Type(s) | (1) 5-pin M12 A-coded (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Includes | Mounting hardware | |
