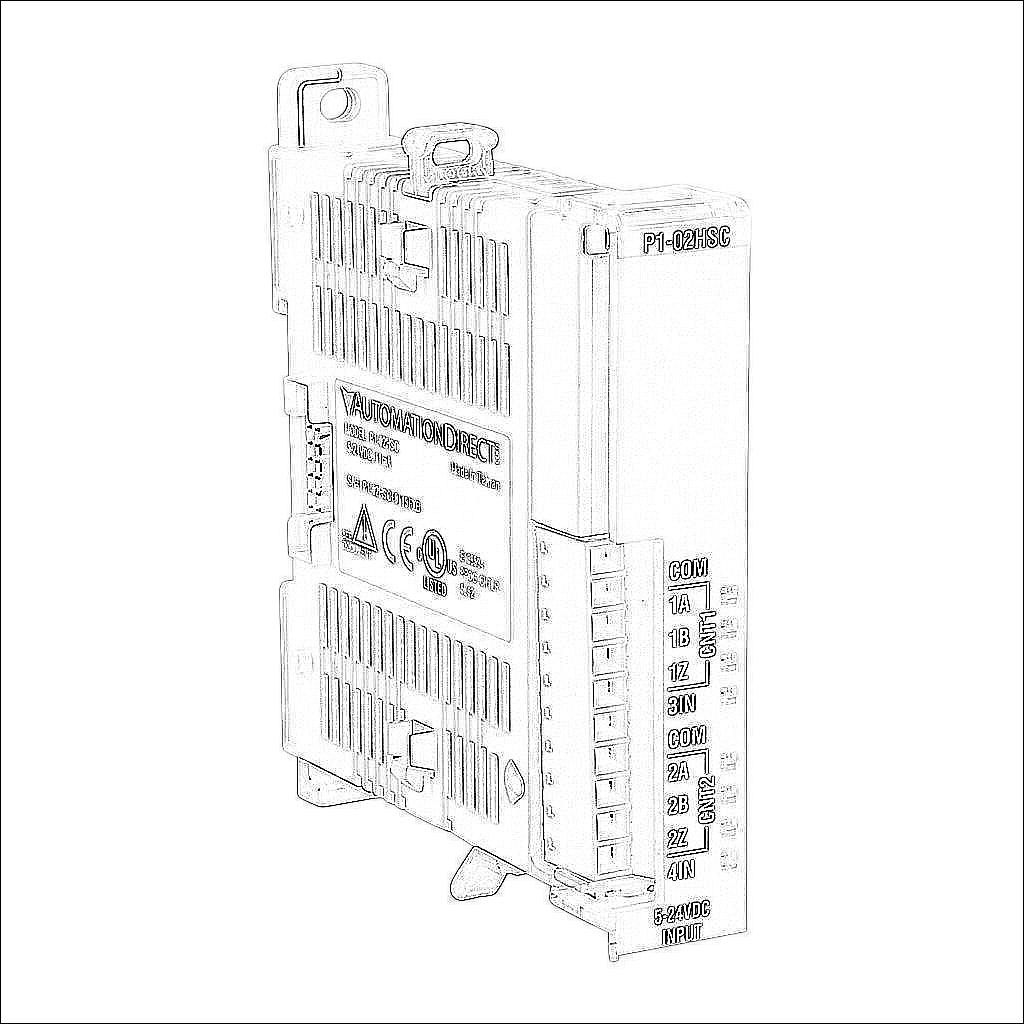

P1-02HSC

P1-02HSC

Productivity1000 counter input module, 100 kHz maximum switching frequency, 2 high-speed input point(s), 5-24 VDC, sinking/sourcing, 2-channel, single-ended encoder input(s), external 24 VDC required.

$107.50
/
Technical Data
BrandProductivity1000
ItemInput module
I/O Module TypeCounter
Maximum Switching Frequency100 kHz
Number of High-Speed Capable Input Points2
Nominal Input Voltage5-24 VDC
Discrete Input TypeSinking/sourcing
Number of Non-Isolated Input Commons2
Number of Input Channels2
Encoder Input Type
  • NPN open collector
  • PNP open collector
  • push-pull (totem)
High-Speed Counter(s)
  • up to (2) pulse/direction (bi-directional) counters
  • up to (2) quadrature (A and B with Z) counters
Position Scaling
  • up to (2) pulse/direction (bi-directional) counters
  • up to (2) quadrature (A and B with Z) counters
External Power Requirement24 VDC
RequiresP1-10RTB or P1-10RTB-1 removable terminal block
Programming SoftwareProductivity Suite programming software v3.5 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
