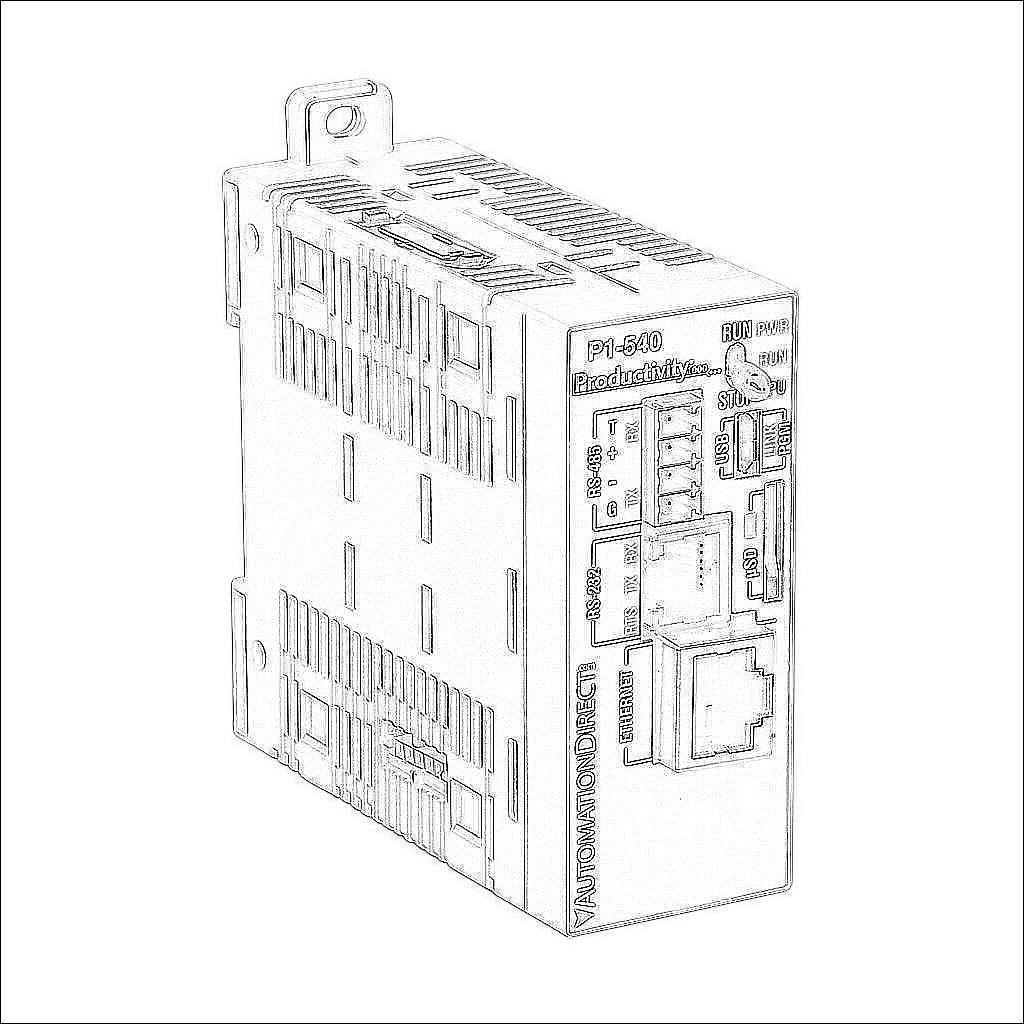

P1-540

P1-540

Productivity1000 CPU, up to 50 MB ladder memory, microSD card slot, (1) Ethernet 10/100Base-T (RJ45), (1) RS-232 (RJ12), (1) RS-485 (4-pin terminal) and (1) microB-USB port(s), external 24 VDC required, battery included.

$296.25
/
Technical Data
BrandProductivity1000
ItemCPU
Total MemoryUp to 50 MB
Ladder MemoryUp to 50 MB
User Data MemoryUp to 50 MB
Removable Media TypeMicroSD card slot
Programming LanguageLadder
Programming SoftwareProductivity Suite programming software v3.0 or later
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-485 (4-pin terminal)
  • (1) microB-USB
Port Protocol(s)
  • MQTT Client
  • Modbus RTU Master/Slave
  • Modbus TCP
  • ASCII In/out
  • EtherNet/IP explicit messaging scanner/adapter
  • EtherNet/IP implicit messaging scanner/adapter
  • webserver (non-secure HTTP)
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Expansion Modules Allowed15
External Power Requirement24 VDC
IncludesD2-BAT-1 battery
Dangerous Goods
  • Battery Installed: No
  • Packaging Instructions: 969
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.17
  • Replacement Battery: D2-BAT-1
  • Generic Battery: CR2354
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
