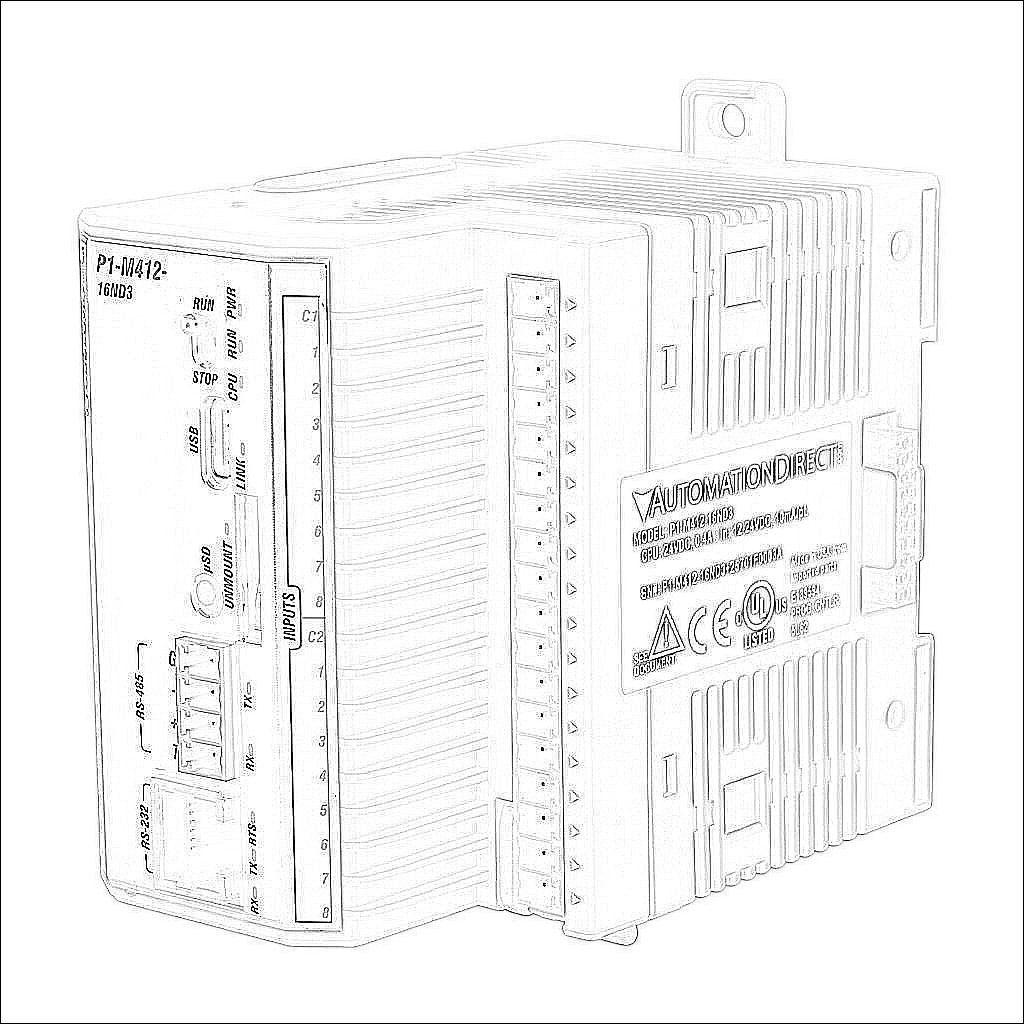

P1-M412-16ND3

Productivity1000 PLC, 24 VDC required, Ethernet, serial and USB C ports, microSD card slot, Discrete Input: 16-point, DC.

$193.75

		Technical Data
	Brand	Productivity1000
	Item	PLC
	Total Memory	Up to 32 MB
	Ladder Memory	Up to 32 MB
	User Data Memory	Up to 32 MB
	Removable Media Type	MicroSD card slot
	Programming Language	Ladder
	Programming Software	Productivity Suite programming software v4.5 or later
	Communication Port and Connection Type(s)	(1) Ethernet 10/100Base-T (RJ45) (1) RS-232 (RJ12) (1) RS-485 (4-pin terminal) (1) USB C
	Port Protocol(s)	MQTT Client MQTTs Client Modbus RTU Master/Slave Modbus TCP ASCII In/out TCP/IP UDP/IP EtherNet/IP explicit messaging scanner/adapter EtherNet/IP implicit messaging scanner/adapter programming and monitoring webserver (secure HTTPs)
	Port Speed(s)	10/100 Mbps up to 115.2k baud
	Real Time Clock/Calendar	No
	Retentive Memory	Yes
	Battery Backup	No
	Maximum Expansion Modules Allowed	2
	External Power Requirement	24 VDC
	Number of Discrete Input Points	16
	Nominal Input Voltage	12-24 VDC
	Voltage Type	DC
	Discrete Input Type	Sinking/sourcing
	Number of Isolated Discrete Input Commons	2
	Number of Points per Discrete Input Common	8
	Maximum Number of PID Loops	100+ (configurable to memory limit)
	Requires	P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
