| Technical Data | ||
|---|---|---|

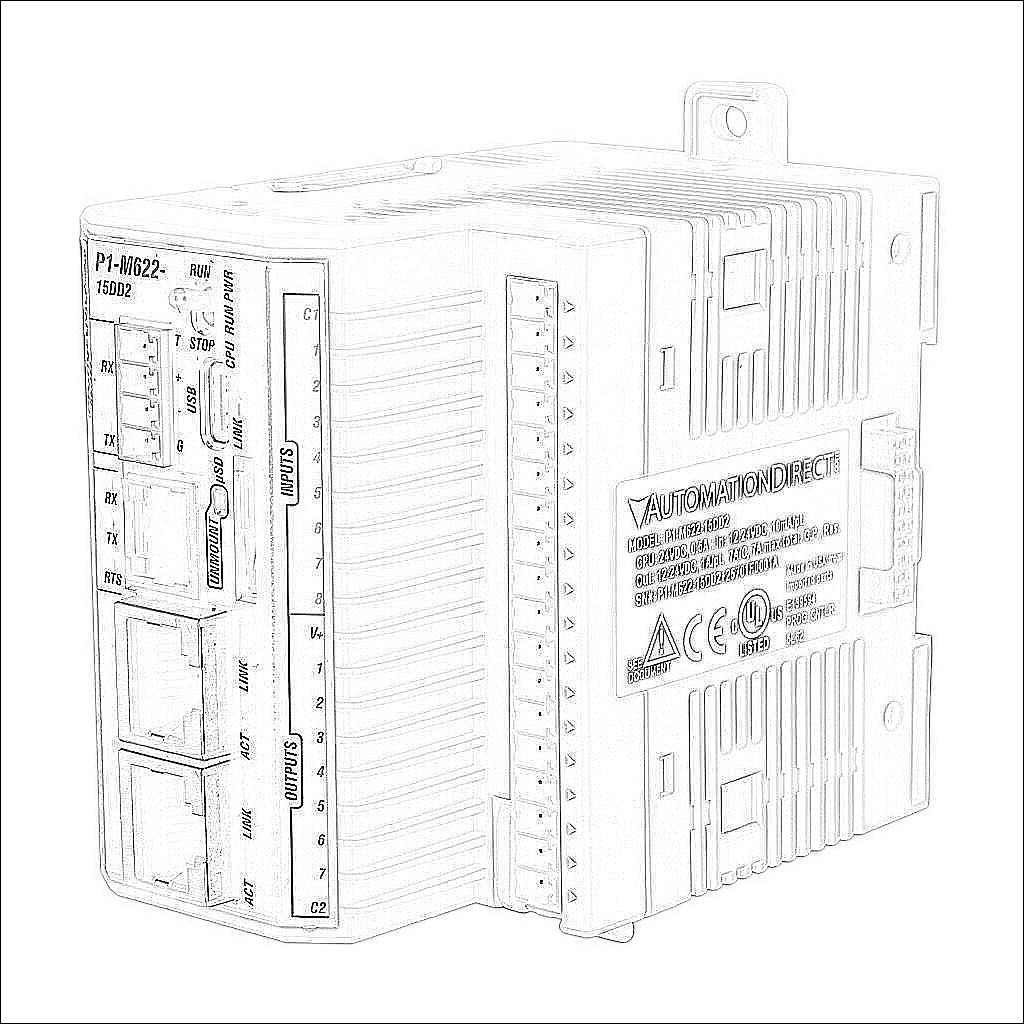

| Brand | Productivity1000 | |
| Item | PLC | |
| Total Memory | Up to 50 MB | |
| Ladder Memory | Up to 50 MB | |
| User Data Memory | Up to 50 MB | |
| Removable Media Type | MicroSD card slot | |
| Programming Language | Ladder | |
| Programming Software | Productivity Suite programming software v4.5 or later | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| Real Time Clock/Calendar | Yes | |
| Retentive Memory | Yes | |
| Battery Backup | Yes | |
| Maximum Expansion Modules Allowed | 4 | |
| External Power Requirement | 24 VDC | |
| Number of Discrete Input Points | 8 | |
| Nominal Input Voltage | 12-24 VDC | |
| Voltage Type | DC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 8 | |
| Number of Discrete Output Points | 7 | |
| Nominal Output Voltage | 12-24 VDC | |
| Discrete Output Type | Sourcing | |
| Load Current | 1A/point | |
| Number of Non-Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 7 | |
| Maximum Number of PID Loops | 100+ (configurable to memory limit) | |
| Includes | D2-BAT-1 battery | |
| Requires | P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables | |
| Dangerous Goods |
| |
