| Technical Data | ||
|---|---|---|

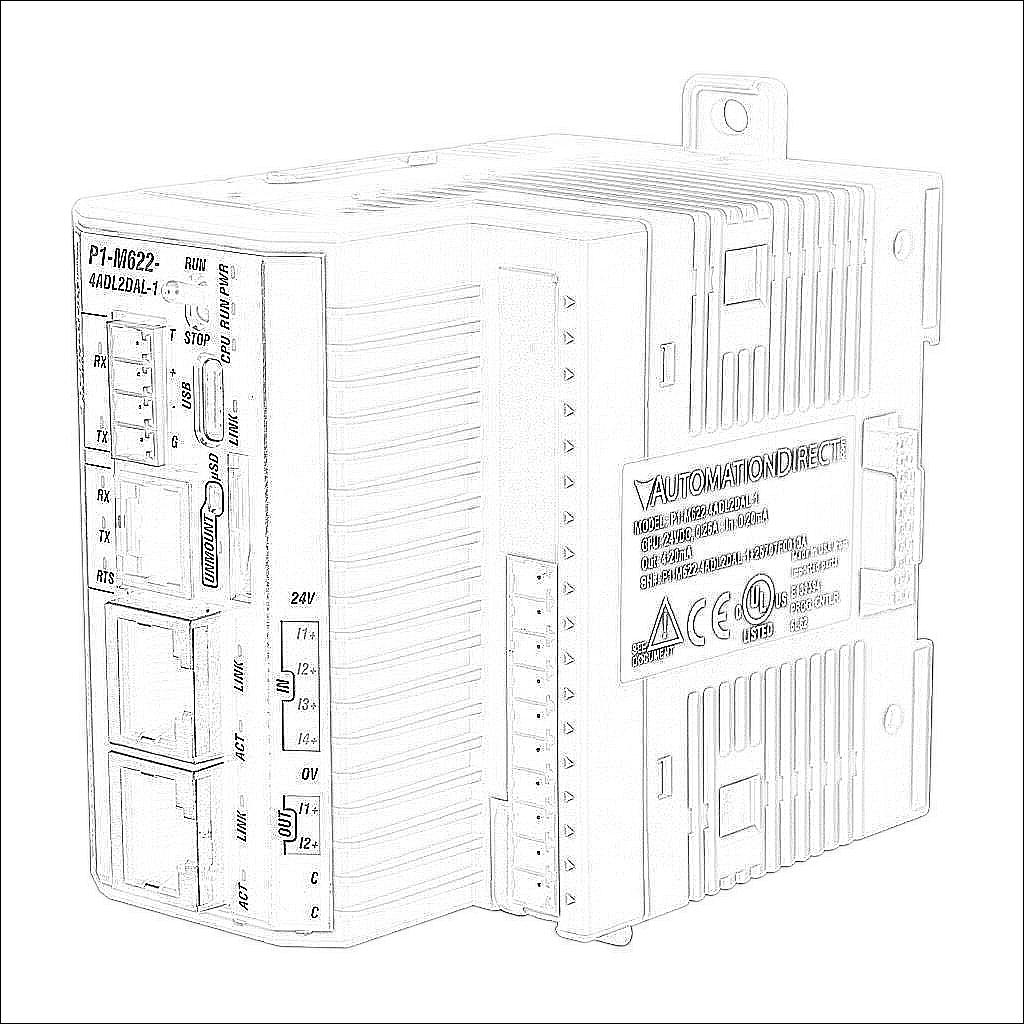

| Brand | Productivity1000 | |
| Item | PLC | |
| Total Memory | Up to 50 MB | |
| Ladder Memory | Up to 50 MB | |
| User Data Memory | Up to 50 MB | |
| Removable Media Type | MicroSD card slot | |
| Programming Language | Ladder | |
| Programming Software | Productivity Suite programming software v4.5 or later | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| Real Time Clock/Calendar | Yes | |
| Retentive Memory | Yes | |
| Battery Backup | Yes | |
| Maximum Expansion Modules Allowed | 4 | |
| External Power Requirement | 24 VDC | |
| Number of Analog Input Channels | 4 | |
| Analog Input Signal Type | Current | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 4 | |
| Input Resolution | 13-bit | |
| Input Current Signal Range | 0-20 mA | |
| Number of Analog Output Channels | 2 | |
| Analog Output Signal Type | Current | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Number of Points per Analog Output Common | 2 | |
| Output Resolution | 12-bit | |
| Output Current Signal Range | 4-20 mA | |
| Maximum Number of PID Loops | 100+ (configurable to memory limit) | |
| Includes | D2-BAT-1 battery | |
| Requires | P1-10RTB or P1-10RTB-1 removable terminal block or ZIPLink pre-wired cables | |
| Dangerous Goods |
| |
