| Technical Data | ||
|---|---|---|
| Brand | Metrol | |

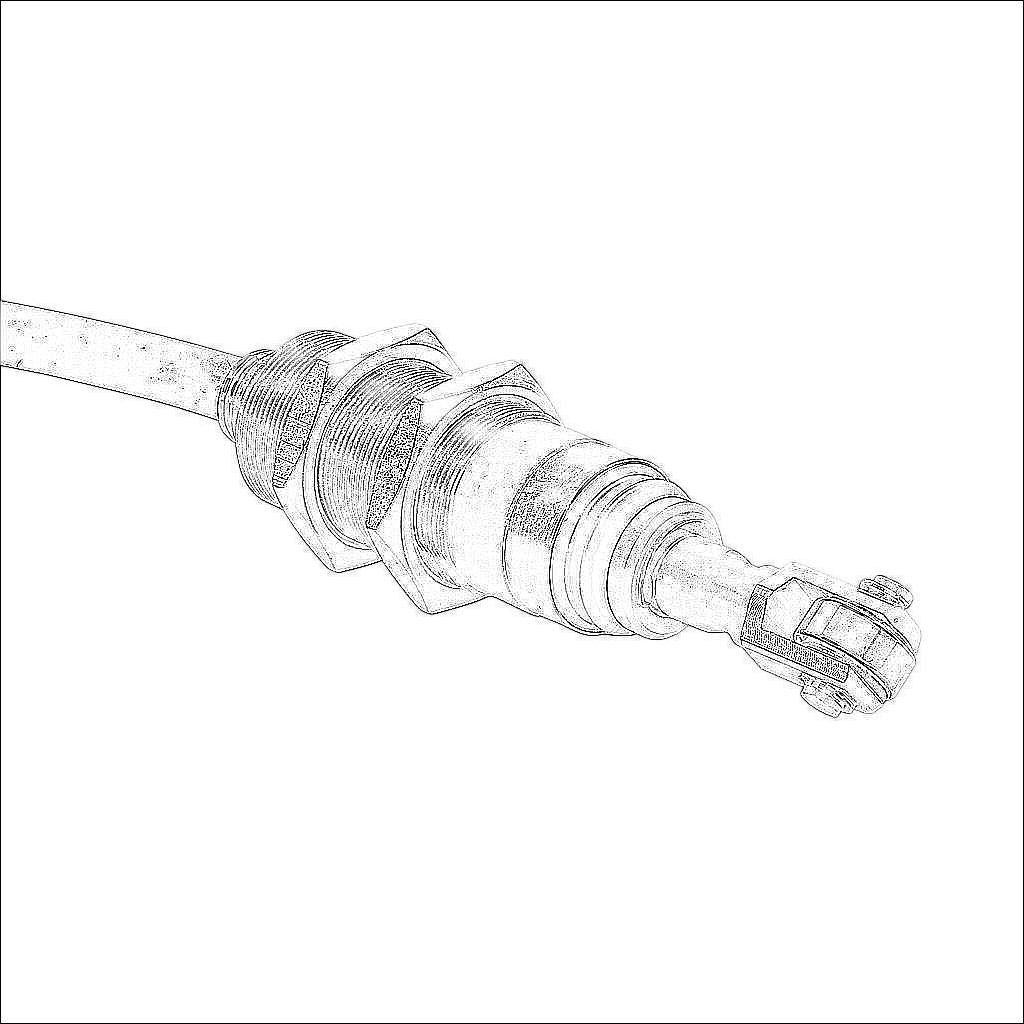

| Item | Limit switch | |
| Switch Type | High precision touch | |
| Diameter | 14mm | |
| Barrel Type | Threaded | |
| Length | 55mm | |
| Head Type | 8mm roller | |
| Actuator Type | 2.5mm plunger | |
| Contact Force | 1N | |
| Contact Type | (1) N.C. | |
| Cable Length | 9.8ft/3m | |
| Connection | Pigtail | |
| Conductor Size | 19 AWG | |
| Stroke | 3mm | |
| Repeatability | 0.0005mm | |
| Thread Pitch | 0.5mm | |
| Material | Stainless steel | |
| Head Material | Stainless steel | |
| IP Rating | IP67 | |
| Operating Temperature | 0 to 80 deg C | |
| Indicating Type | LED indication | |
| Includes | Mounting hardware | |
