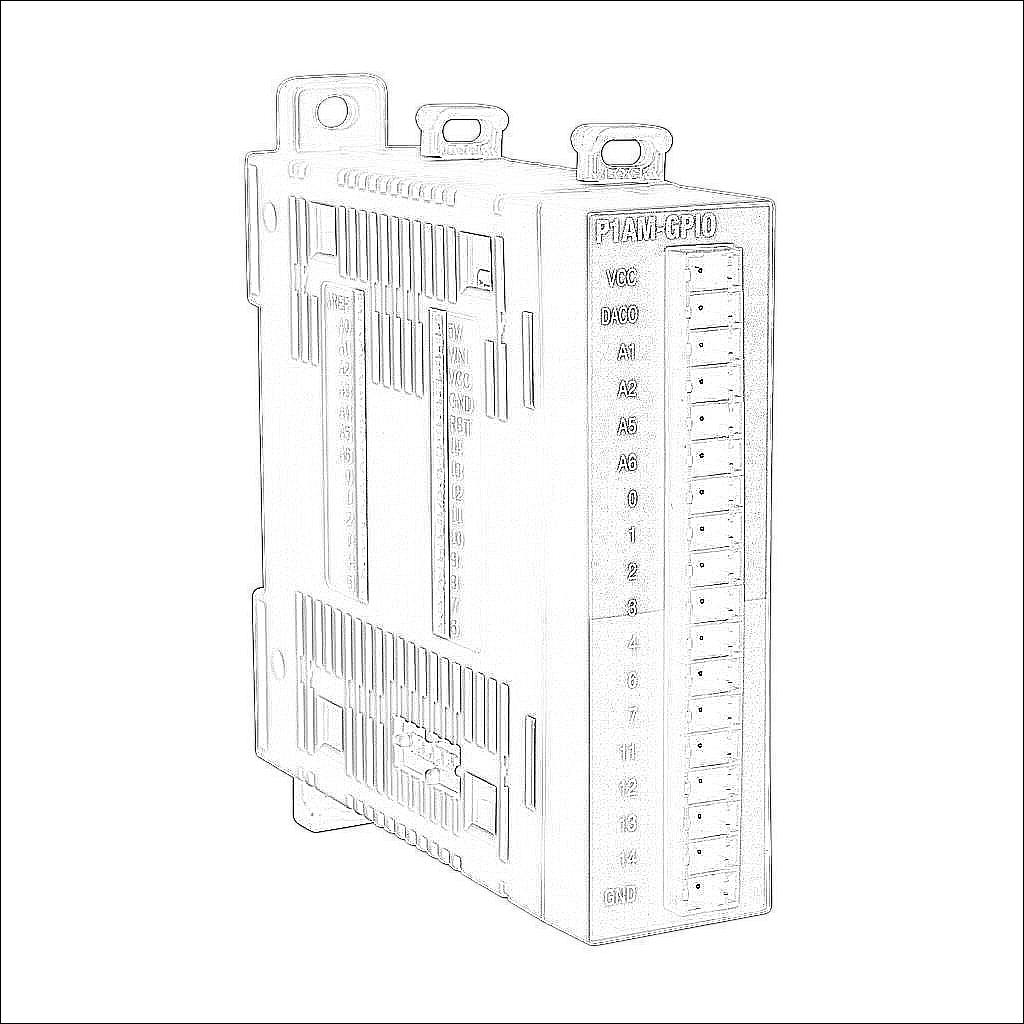

| Technical Data | ||
|---|---|---|
| Brand | ProductivityOpen | |
| Item | MKR-pins extension shield | |
| Number of Analog Input Channels | Up to 4 | |
| Analog Input Signal Type | Voltage | |
| Input Resolution | 8-bit, 10-bit and 12-bit | |
| Input Voltage Signal Range | 0-3.3 VDC | |
| Number of Analog Output Channels | Up to 1 | |
| Analog Output Signal Type | Voltage | |
| Output Resolution | 10-bit | |
| Output Voltage Signal Range | 0-3.3 VDC | |
| Number of General Purpose Discrete I/O Points | Up to 16 | |
| Discrete Input Type | Sinking/sourcing | |
| Load Current | 7 mA/point | |
| Number Of Commons | 1 | |
| Communication Port and Connection Type(s) | Up to (1) UART (2-pin terminal) and up to (1) I2C (2-pin terminal) port(s) | |
| Number of High-Speed Capable Output Points | 7 | |
| Output Pulse Mode(s) | Up to (7) PWM pulse width modulation outputs | |
| For Use With | ProductivityOpen P1AM-100 CPU | |
| Requires | P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables | |
| Programming Software | Arduino software (IDE) and ProductivityBlocks | |
| Additional Information | See product insert for complete list of I/O configuration options | |
