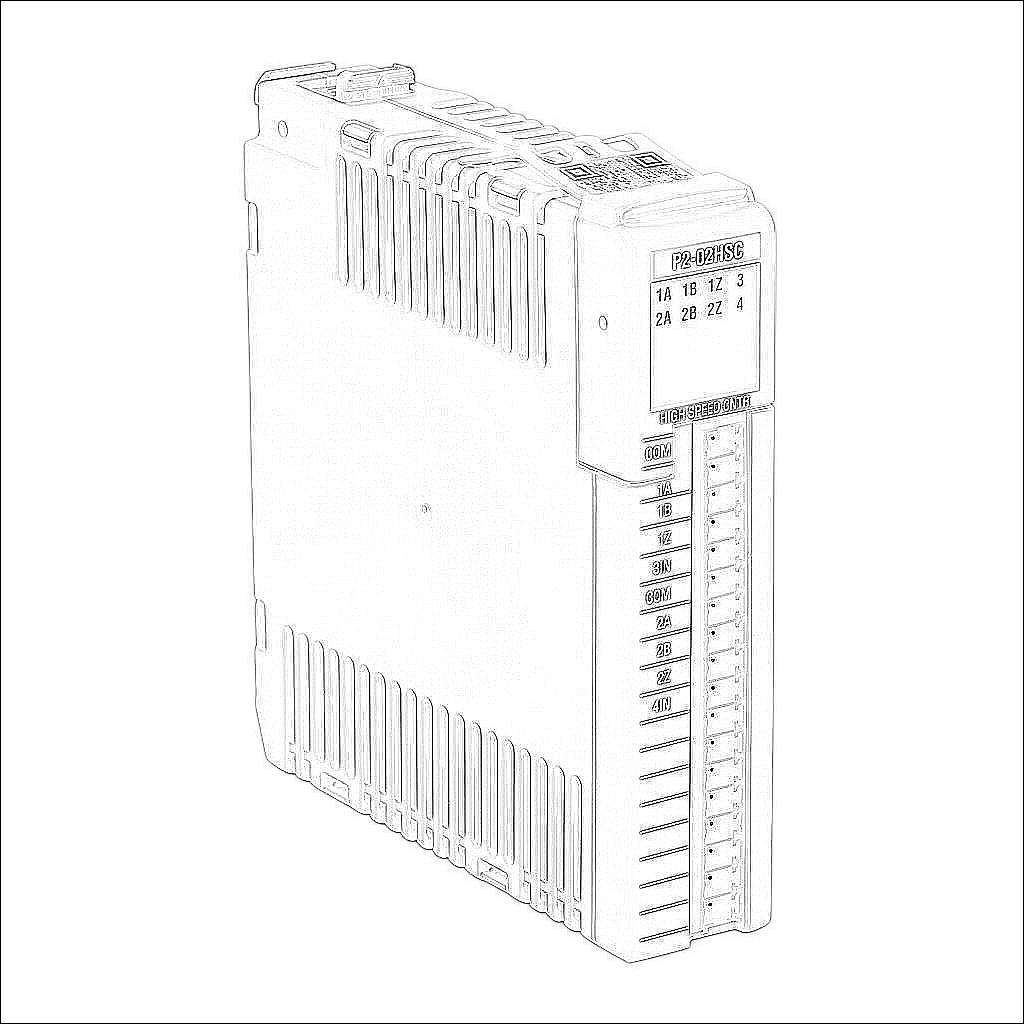

P2-02HSC

P2-02HSC

Productivity2000 counter input module, 100 kHz maximum switching frequency, 2 high-speed input point(s), 5-24 VDC, sinking/sourcing, 2-channel, single-ended encoder input(s), external 24 VDC required.

$150
/
Technical Data
BrandProductivity2000
ItemInput module
I/O Module TypeCounter
Maximum Switching Frequency100 kHz
Number of High-Speed Capable Input Points2
Nominal Input Voltage5-24 VDC
Discrete Input TypeSinking/sourcing
Number of Non-Isolated Input Commons2
Number of Input Channels2
Encoder Input Type
  • NPN open collector
  • PNP open collector
  • push-pull (totem)
External Power Requirement24 VDC
RequiresP2-RTB or P2-RTB-1 removable terminal block
Programming SoftwareProductivity Suite programming software v3.7 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
