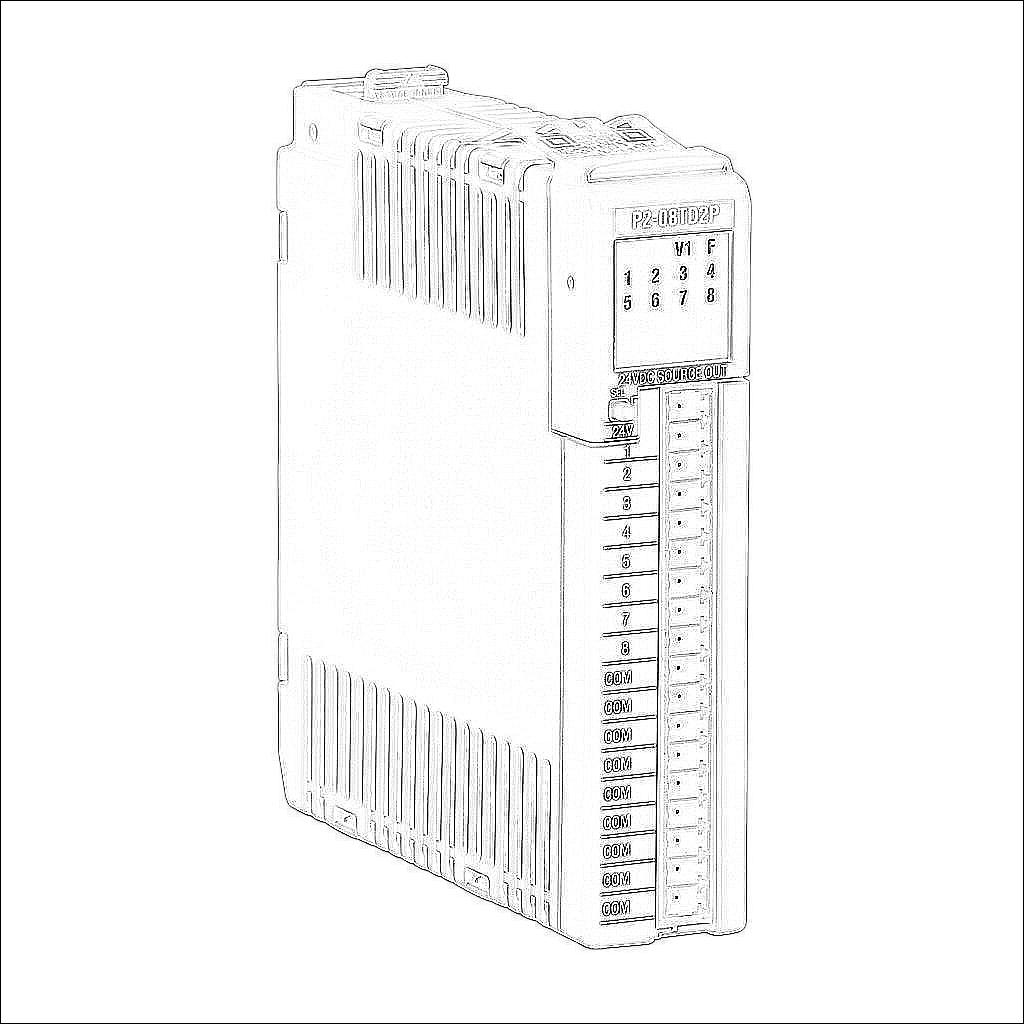

P2-08TD2P

P2-08TD2P

Productivity2000 discrete output module, 8-point, 24 VDC, sourcing, 9 common(s), 1 point(s) per common, 0.25A/point, short circuit and overload protection. Requires P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables.

$75
/
Technical Data
BrandProductivity2000
ItemOutput module
I/O Module TypeDiscrete
Number of Output Points8
Nominal Output Voltage24 VDC
Discrete Output TypeSourcing
Number of Non-Isolated Output Commons9
Number of Points per Common1
Load Current0.25A/point
Protection Type(s)
  • short circuit
  • overload
External Power Requirement24 VDC
RequiresP2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables
Programming SoftwareProductivity Suite programming software v2.0 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
