P2-HSI

P2-HSI

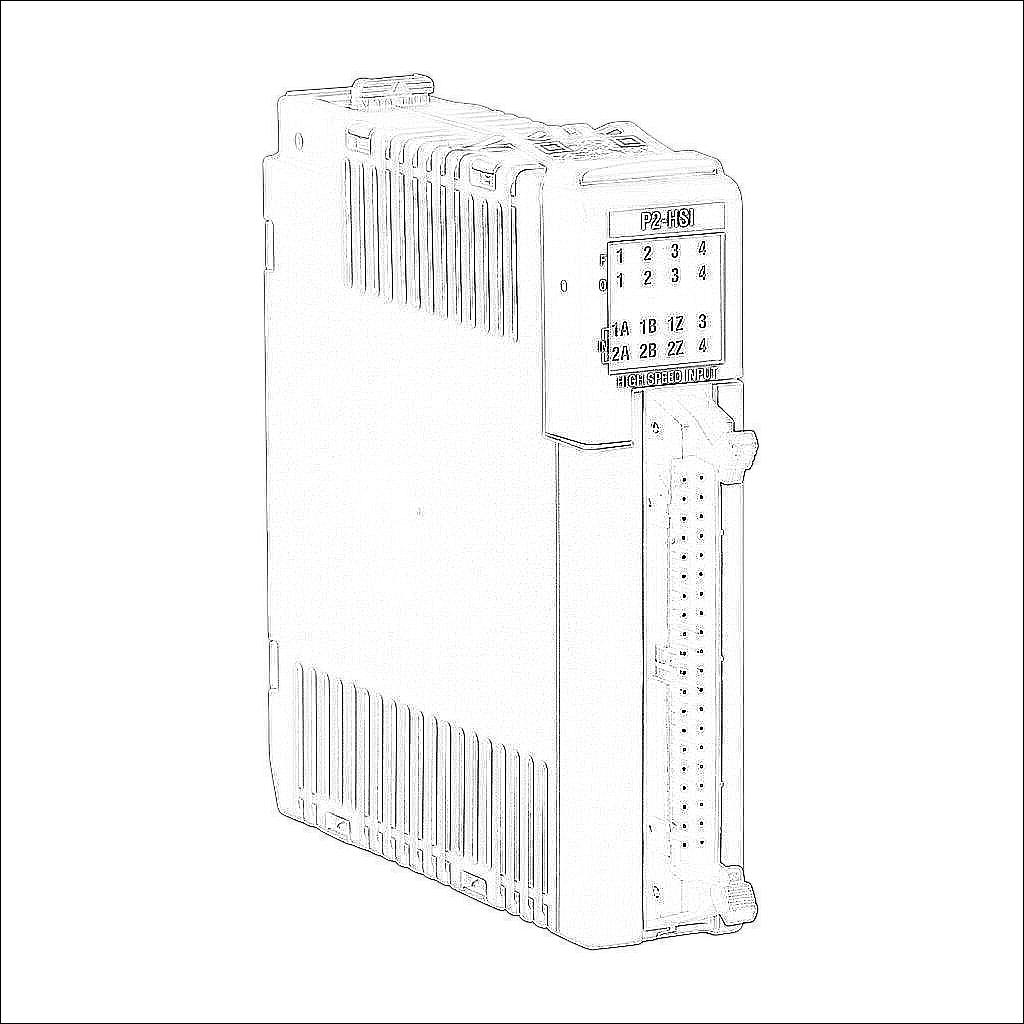

Productivity2000 pulse input module, 1 MHz maximum switching frequency, 2 high-speed input point(s), 5-24 VDC, sinking/sourcing, 2-channel, differential and single-ended encoder input(s), 4 high-speed output point(s), 5-24 VDC, sinking/sourcing, external 24 VDC required.

$360
/
Technical Data
BrandProductivity2000
ItemInput module
I/O Module TypePulse
Maximum Switching Frequency1 MHz
Number of High-Speed Capable Input Points2
Nominal Input Voltage5-24 VDC
Discrete Input TypeSinking/sourcing
Number of Non-Isolated Input Commons1
Number of Input Channels2
Encoder Input Type
  • line receiver (differential)
  • NPN open collector
  • PNP open collector
  • push-pull (totem)
Number of High-Speed Capable Output Points4
Nominal Output Voltage5-24 VDC
Discrete Output TypeSinking/sourcing
Number of Isolated Output Commons4
Load Current0.5A/point
High-Speed Counter(s)
  • up to (2) up counters
  • up to (2) down counters
  • up to (2) up/down counters
  • up to (2) pulse/direction (bi-directional) counters
  • up to (2) quadrature (A and B) counters
  • up to (2) quadrature (A and B with Z) counters
Position Scaling
  • up to (2) up counters
  • up to (2) down counters
  • up to (2) up/down counters
  • up to (2) pulse/direction (bi-directional) counters
  • up to (2) quadrature (A and B) counters
  • up to (2) quadrature (A and B with Z) counters
Table-Driven Input(s)
  • up to (4) programmable limit switches
  • up to (4) preset tables
Axis Profile(s)
  • linear mode
  • rotary mode
External Power Requirement24 VDC
RequiresZL-RTB40(-1) ZIPLink connector module and ZL-CBL40-xS (-S, -1S or -2S) pre-wired shielded cables
Programming SoftwareProductivity Suite programming software v2.1 or later
