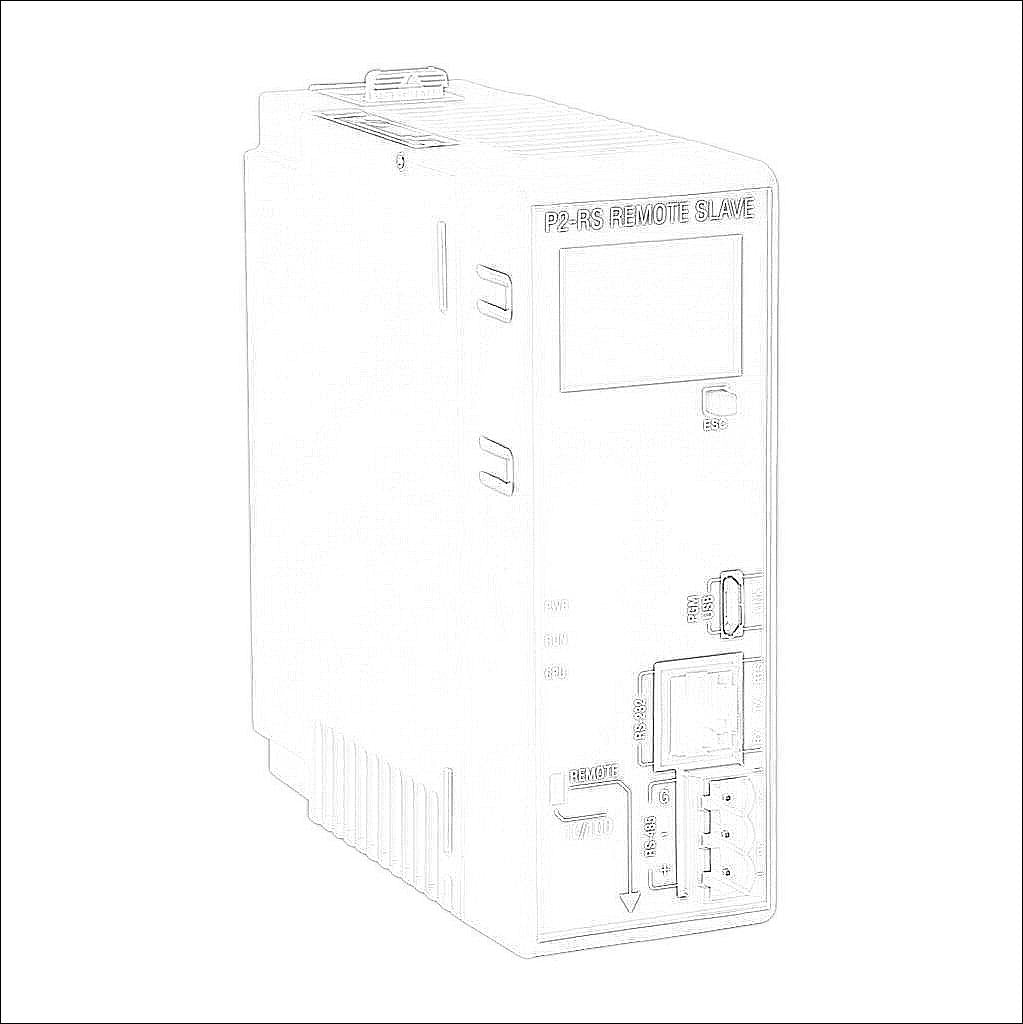

P2-RS

P2-RS

Productivity2000 remote I/O module, 4 ports, (1) Ethernet (RJ45), (1) RS-232 (RJ12), (1) RS-485 (3-pin terminal) and (1) microB-USB port(s), 4 x 10 character OLED display.

$415
/
Technical Data
BrandProductivity2000
ItemRemote I/O module
Number of Ports4
Buffered PortsNo
Communication Port and Connection Type(s)
  • (1) Ethernet (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-485 (3-pin terminal)
  • (1) microB-USB
Port Protocol(s)
  • Modbus RTU Master/Slave
  • ASCII In/out
  • Ethernet remote I/O
  • programming and monitoring
Port Speed(s)
  • 10/100 Mbps
  • up to 115.2k baud
Display Type4 x 10 character OLED
Programming SoftwareProductivity Suite programming software v2.2 or later
Additional InformationInstalls in the CPU slot of each remote base
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
